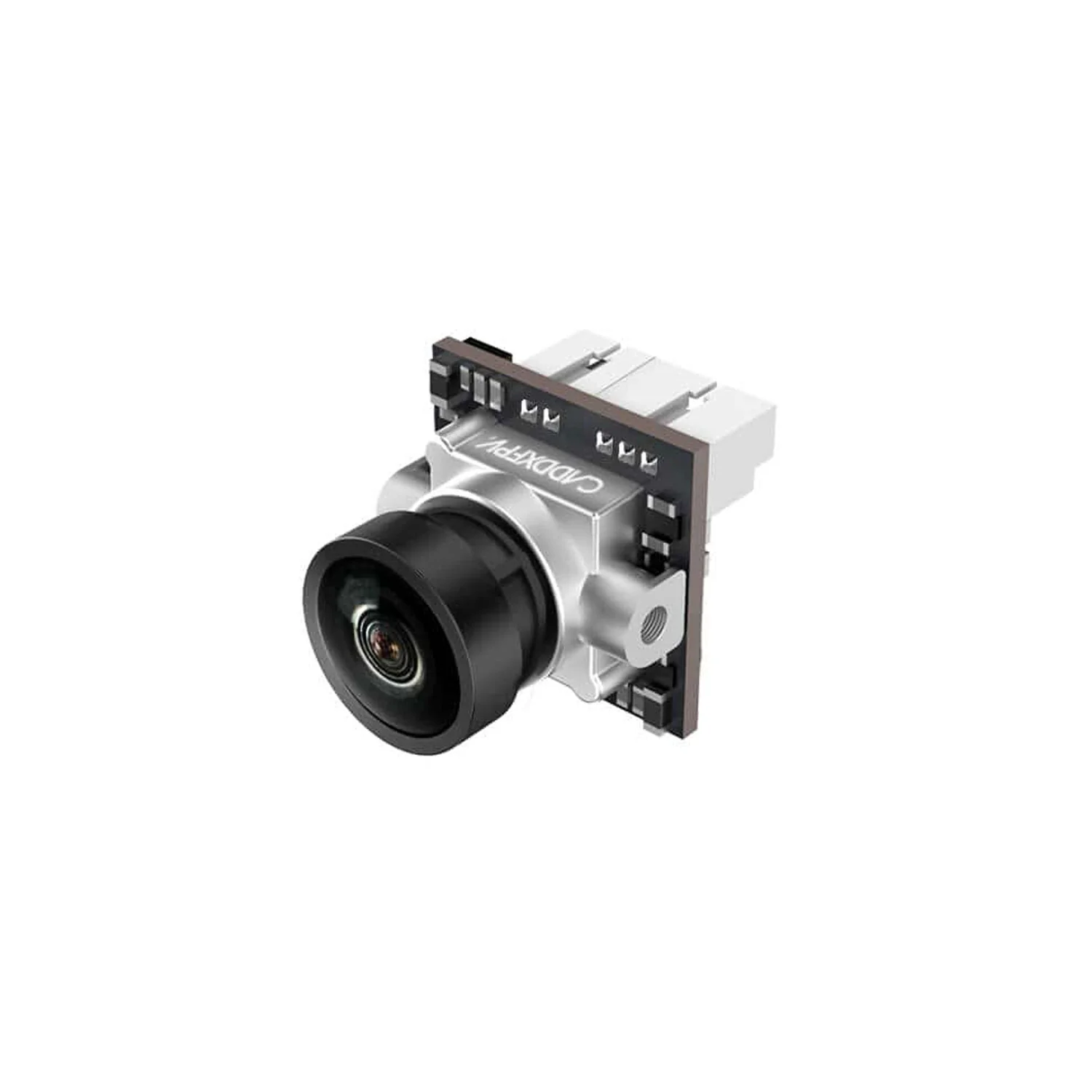

CADDX ANT New generation of nano camera

• 2g Weight
• 1200 TVL
• DC 5-25V
• Global WDR
• OSD menu
• FOV 165°

Specifications:

• Model Caddx Ant
• Image Sensor 1/3" CMOS Sensor
• Horizontal Resolution 1200 TVL
• TV System NTSC and PAL(Switchable)
• MENU Support
• IMAGE 16:9 4:3
• Synchronization Internal
• Electronic Shutter PAL: 1/50˜100,000; NTSC: 1/60˜100,000
• S/N Ratio >52dB (AGC OFF)
• Video Output CVBS
• Lens 1.8mm
• Min. Illumination 0.001Lux@F1.2
• Auto Gain Control YES
• BLC YES
• WDR Global WDR
• DNR 3D DNR
• Dimensions 14*14mm(bracket to 19*19mm)
• Wide Power Input DC 5-25V
• Work Temperature -20°C～+60°C
• Work Humidity 20%~80%
• Weight 2g (N.W.)

Packing List:

• Camera x1
• 19mm case x1
• Screws x4
• 3pin silicone cable x1
• Warranty card x1
