CherryMAX® CR3523-4-02 Universal Head Blind Rivet – FAA-TSO-C148 Certified

The CherryMAX® CR3523-4-02 (also known as CR3523-4-2 and Beechcraft PN 132269B402) is an FAA-TSO-C148 certified blind rivet designed for aerospace and industrial applications. With a universal head, Monel sleeve, and stainless steel stem, this rivet ensures exceptional strength, corrosion resistance, and compliance with strict aviation standards.

Key Features and Benefits:

• FAA-TSO-C148 Certified: Ensures the rivet meets stringent FAA safety and performance standards.
• Universal Head Design: Complies with MS20470 standards for a flush fit and compatibility with various applications.
• High Durability: Monel sleeve and stainless steel stem provide corrosion resistance and long-lasting performance.
• Precise Fit: Designed for hole sizes ranging from 0.129 to 0.132 inches, ensuring a secure and reliable installation.
• Blind Installation Capability: Allows for installation from one side of the workpiece, ideal for limited-access applications.
• Versatile Grip Range: Fits material thicknesses from 0.063 to 0.125 inches, making it adaptable for diverse assembly needs.

Detailed Product Description:

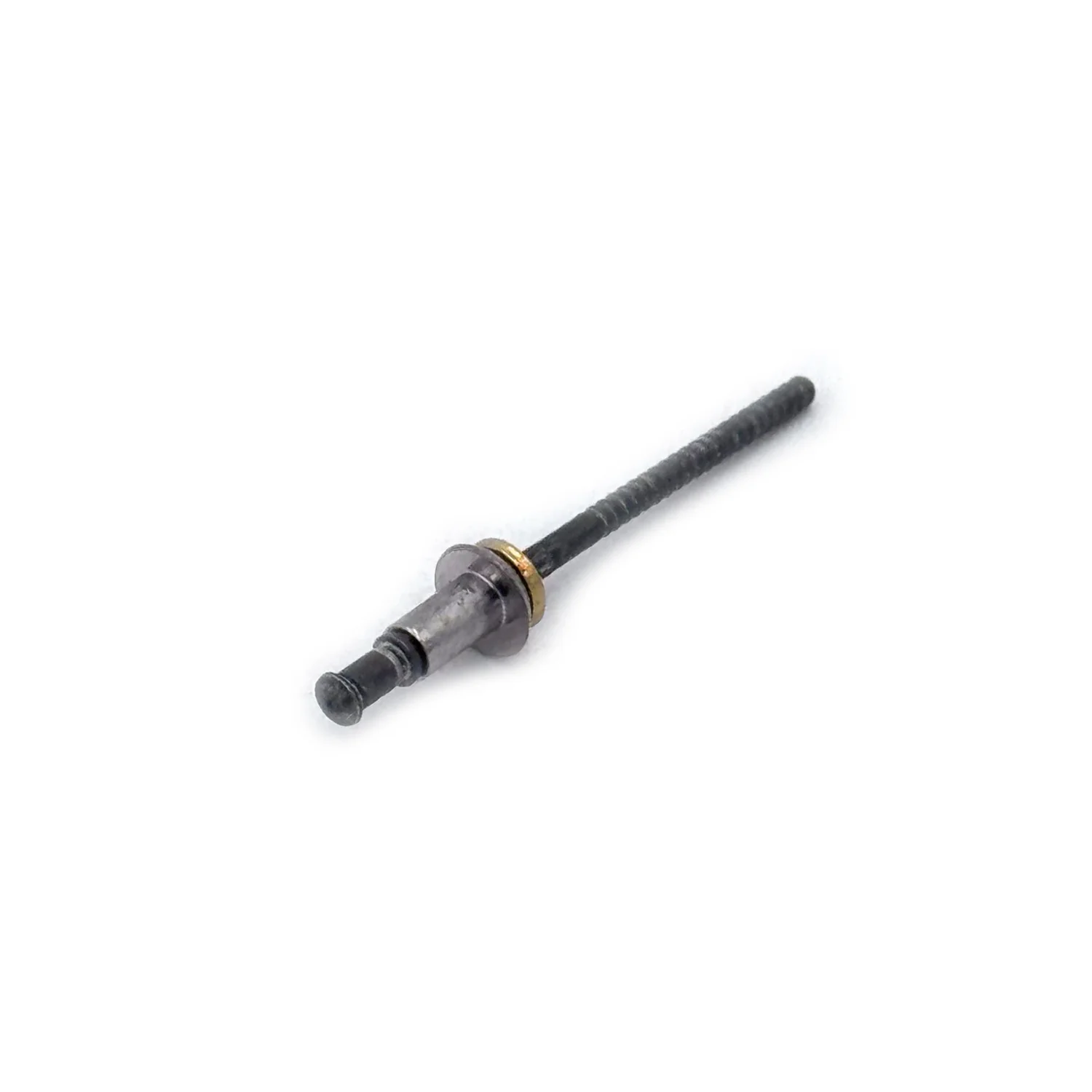

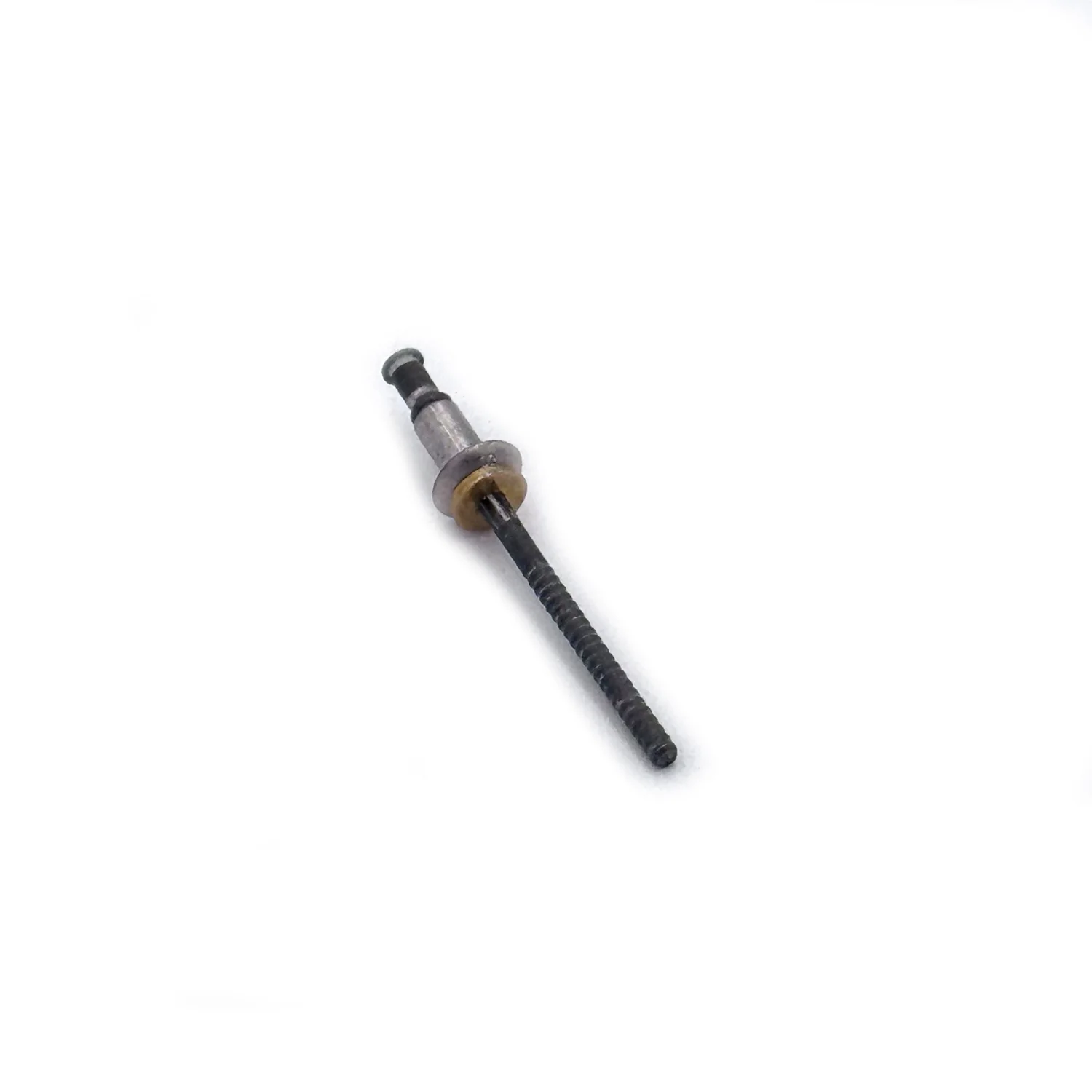

The CherryMAX® CR3523-4-02 rivet is trusted by aerospace manufacturers and maintenance professionals for its combination of strength, reliability, and compliance. It features a 1/8-inch (0.125-inch) shank diameter, a grip range of 0.063 to 0.125 inches, and a universal head design that provides a clean, flush finish. Constructed with a Monel sleeve (per QQ-N-281) and a stainless steel stem (per AMS 5657), this rivet offers a tensile strength of 400 psi and a shear strength of 646 psi.

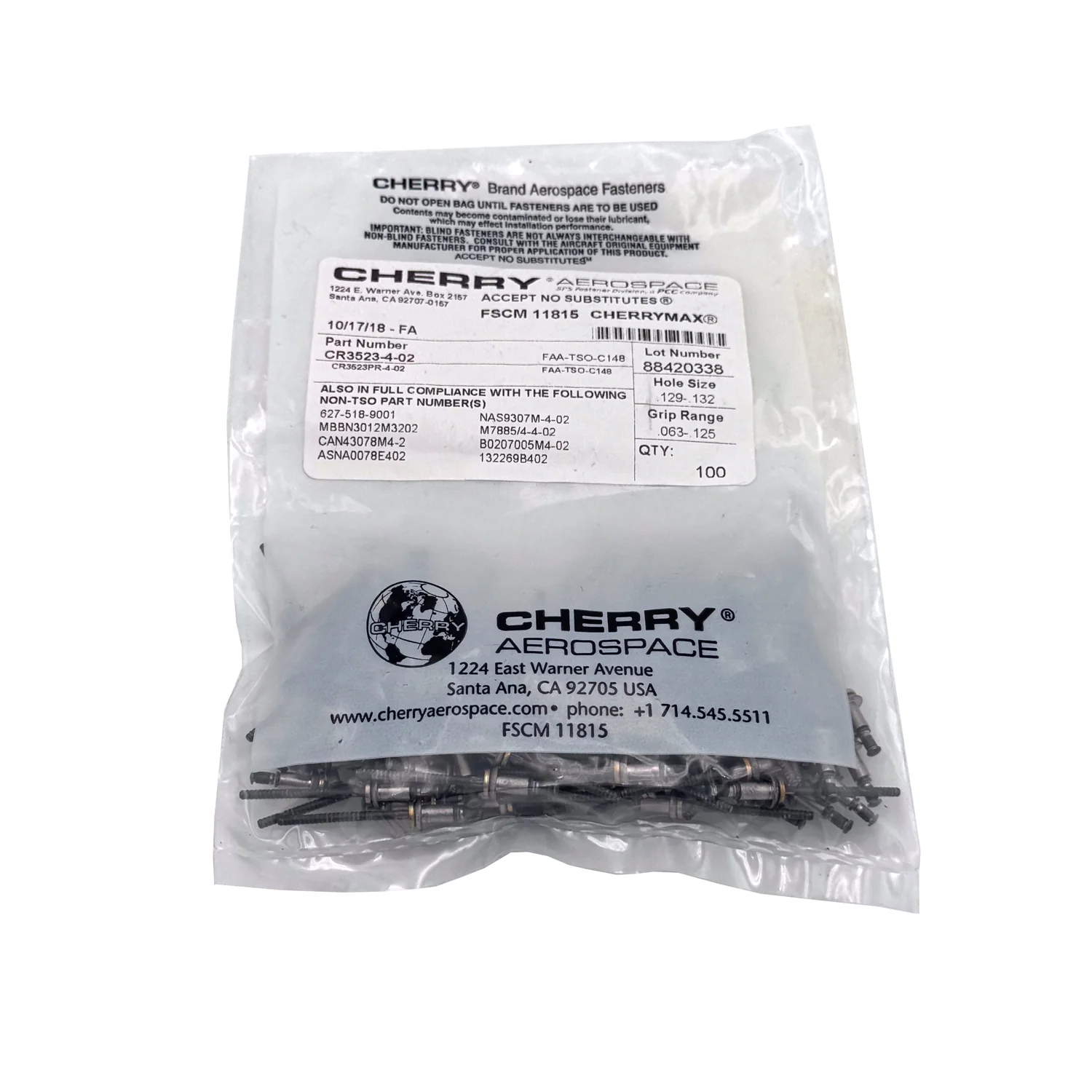

The rivet is FAA-TSO-C148 certified, ensuring it meets the highest standards for safety and performance in aviation. Additionally, it complies with the following non-TSO part numbers for added versatility:

• 627-518-9001
• MBBN3012M3202
• CAN43078M4-2
• ASNA0078E402
• NAS9307M-4-02
• M7885/4-4-02
• B0207005M402
• 132269B402

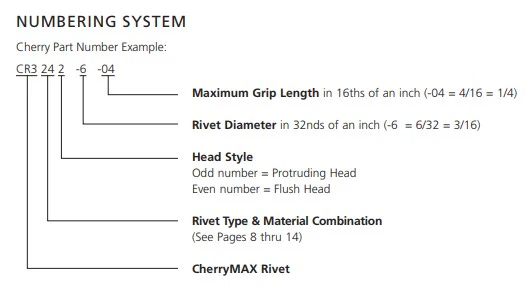

The CherryMAX part numbering system, illustrated above, ensures clarity for part identification, making it easy to select the right rivet for your specific application.

Technical Specifications:

• Part Numbers: CR3523-4-02, CR3523-4-2, Beechcraft PN 132269B402
• FAA Certification: TSO-C148
• Diameter: 1/8 inch (0.125 inches)
• Grip Range: 0.063 to 0.125 inches
• Hole Size: 0.129 to 0.132 inches
• Head Style: Universal
• Sleeve Material: Monel (QQ-N-281)
• Stem Material: Stainless Steel (AMS 5657)
• Tensile Strength: 400 psi
• Shear Strength: 646 psi
• Standards Compliance: MS20470, PS-CMR-3000

Why Choose CherryMAX® Rivets?

CherryMAX® rivets are renowned for their superior performance, making them the go-to solution for demanding aerospace applications. With a combination of FAA certification, corrosion resistance, and secure blind installation, the CR3523-4-02 ensures safe, long-lasting fastenings.
