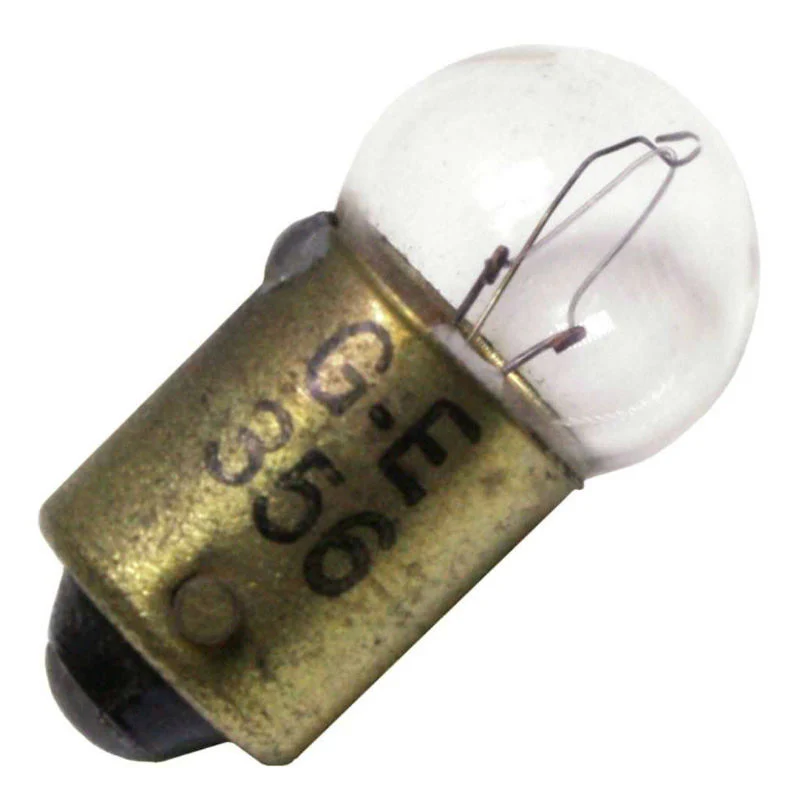

GE Incandescent Lamp: 28v | 356 | 26255

GE G3.5 (G3 1/2) - Aircraft; Low Voltage

GENERAL CHARACTERISTICS
Lamp type    Miniature - G Shape
Bulb    G3.5 (G3 1/2)
Base     Miniature Bayonet (Ba9s)
Primary Application     Aircraft; Low Voltage
Filament    C-2F
Rated Life (MIN)    5 hrs
Rated Life (Vert)    500 hrs
Rated Life    500 hrs
Rated Life (Hor)    5 hrs
Bulb Material    Lead glass
Atmosphere    Vacuum

PHOTOMETRIC CHARACTERISTICS
Initial Lumens (Vert)    44
Initial Lumens    44
Initial Lumens (Hor)    9
Nominal Initial Lumens per Watt    9
Center Beam Candlepower (CBCP)    44
Mean Spherical Candlepower (MSCP)    4

ELECTRICAL CHARACTERISTICS
Wattage    5
Voltage (MIN)    500.0
Voltage    28

DIMENSIONS
Maximum Overall Length (MOL)     0.9400 in (23.8 mm)
Bulb Diameter (DIA)     0.4380 in (11.1 mm)
Light Center Length (LCL)     0.5000 in (12.7 mm)

PRODUCT INFORMATION
Product Code    26255
Description    356
ANSI Code    356
Standard Package    Case
Standard Package GTIN    00043168262552
Standard Package Quantity    50
Sales Unit    Unit
No Of Items Per Sales Unit    1
No Of Items Per Standard Package    50
UPC    043168963428
