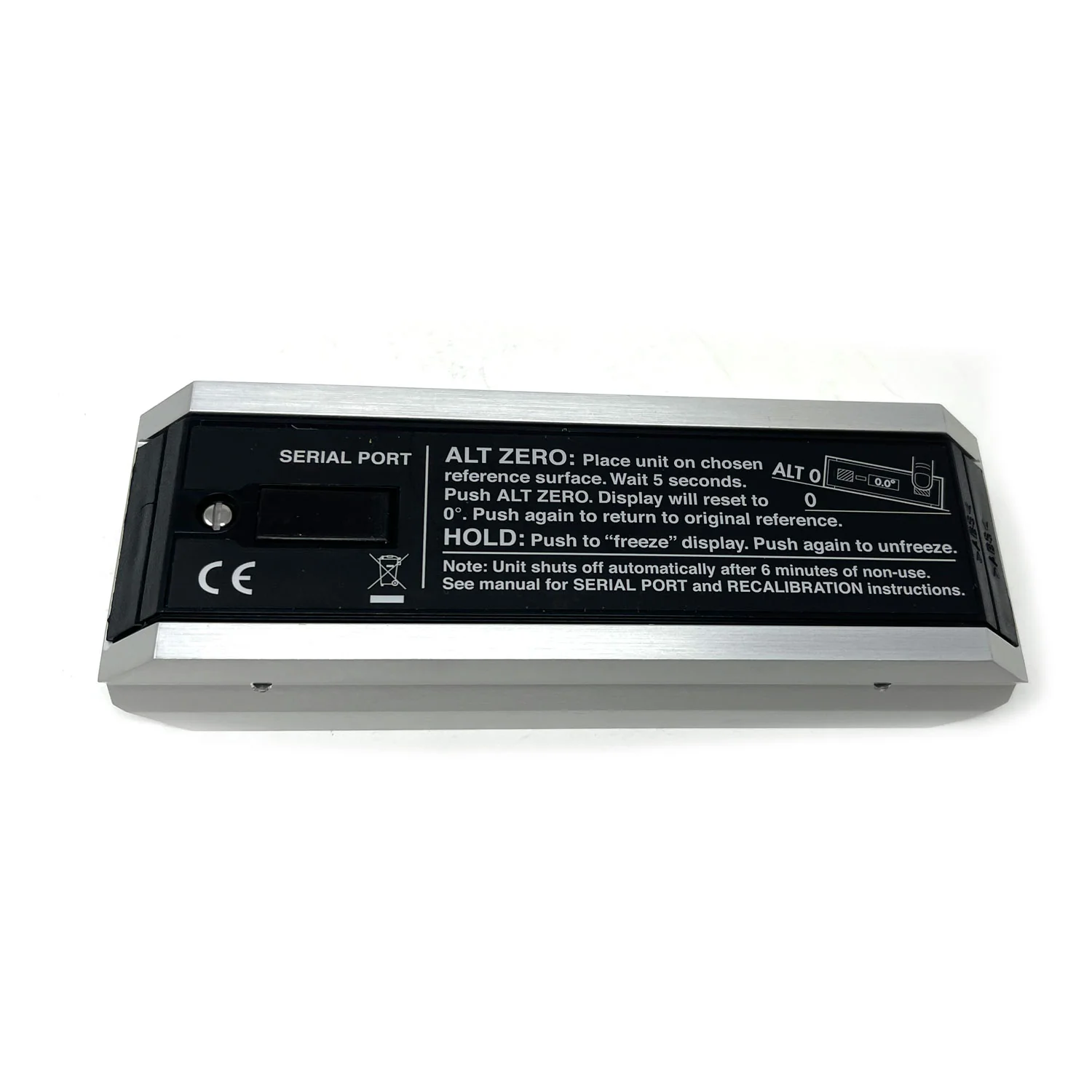

The Aero Angle II Pro 3600 Digital Protractor from Kell Strom is a cutting-edge instrument that gives a digital indication of level, plumb, and any angle in between. The machined aluminum frame with an incorporated base plate is a lightweight, rigid, and ultra-precise platform for the integrated sensor and microprocessor circuit to deliver unequaled precision throughout the protractor's 360-degree range. This unit is accurate up to 0.01 degree and has an RS-232 compatible serial port for a computer interface and SPC records keeping.

Specifications

• Range: 360 degrees (90 degrees X 4)
• Resolution: 0.01 degrees (0 deg. - 10 deg.) - 0.10 degrees (10 deg. - 90 deg.)
• Accuracy: +/-0.05 degrees (0 deg. - 10 deg.), +/-0.10 degrees (80 deg. - 90 deg.), +/-0.20 degrees (10 deg. - 80 deg.)
• Repeatability: 0.05 degrees
• Cross Axis Error: Minimal
• Serial Port: Type: RS-232
• Connector: 10 Pin, rectangular
• Supply Voltage: 9-volt alkaline battery
• Battery Life: 500 hours (typical)
• Temperature: Operating: -5 deg.C - +50 deg.C (23 deg. F - +122 deg. F)
• Storage: -20 deg.C - +65 deg.C (-4 deg. F - +149 deg. F)
• Weight: 289 grams (10.2 ounces)

• 09429598

• PRO 3600

• NSN 5210014180671
