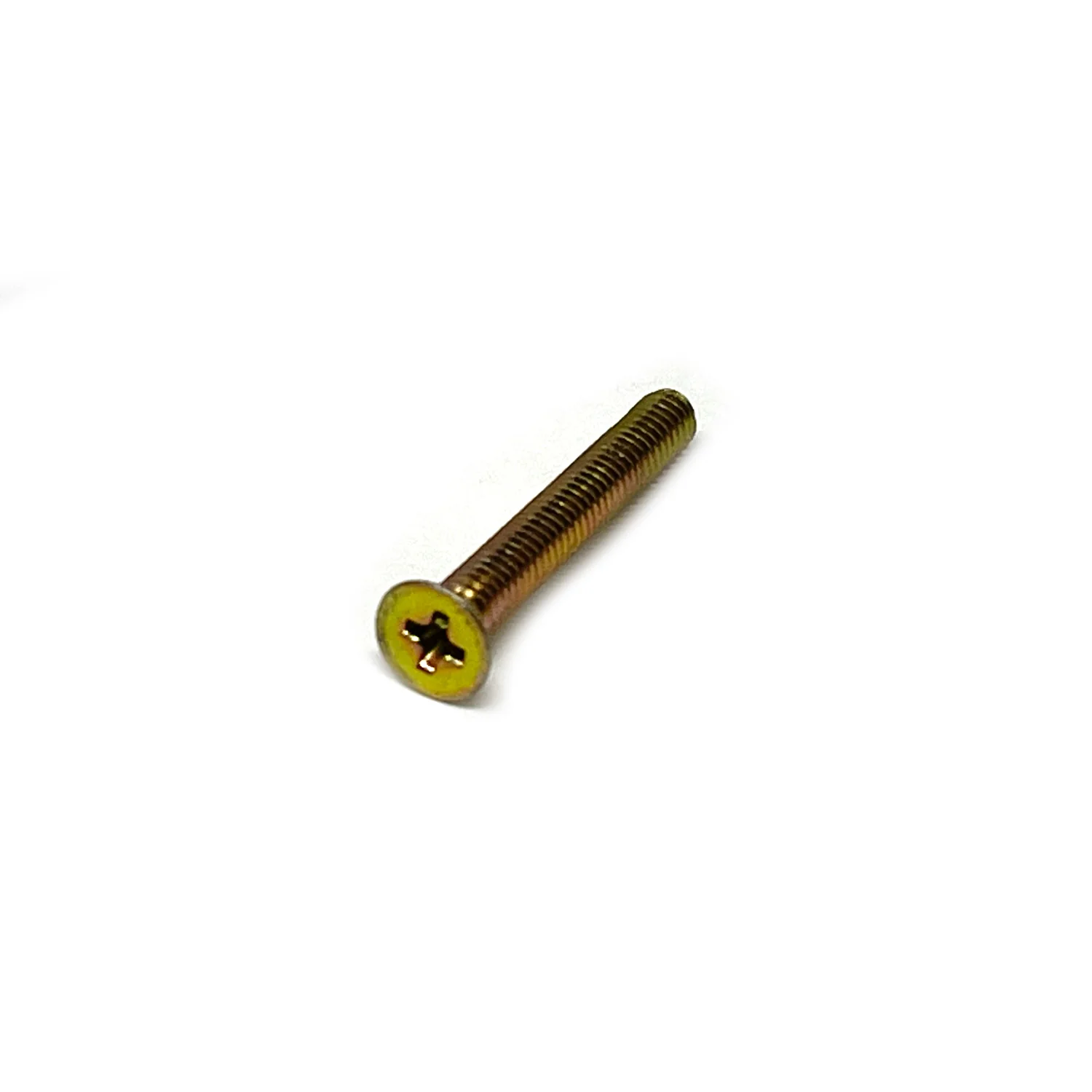

Mili Std - Carbon Steel Screw, Machine | MS24693-S47

Description

•  Thread Class:  2A
•  Thread Direction:  Right-Hand
•  Thread Length:  0.250 Inches Minimum And 0.312 Inches Maximum
•  Fastener Length:  0.281 Inches Minimum And 0.312 Inches Maximum
•  Head Style:  Flat Countersunk
•  Head Diameter:  0.285 Inches Minimum And 0.332 Inches Maximum
•  Internal Drive Style:  Cross Recess Type 1
•  Nominal Thread Diameter:  0.164 Inches
•  Thread Quantity Per Inch:  32
•  Minimum Tensile Strength:  60000 Pounds Per Square Inch
•  Countersink Angle:  99.0 Degrees Minimum And 101.0 Degrees Maximum
•  Screw Material:  Steel Comp 1010
•  Screw Material Document And Classification:  Qq-S-630 Fed Spec Single Material Response Or Qq-S-631 Fed Spec Single Material Response Or Qq-S-634 Fed Spec Single Material Response
•  Screw Surface Treatment:  Cadmium And Chromate
•  Screw Surface Treatment Document And Classification:  Qq-P-416 Ty 2 Cl 3 Fed Spec All Treatment Responses
•  Thread Series Designator:  Unc
