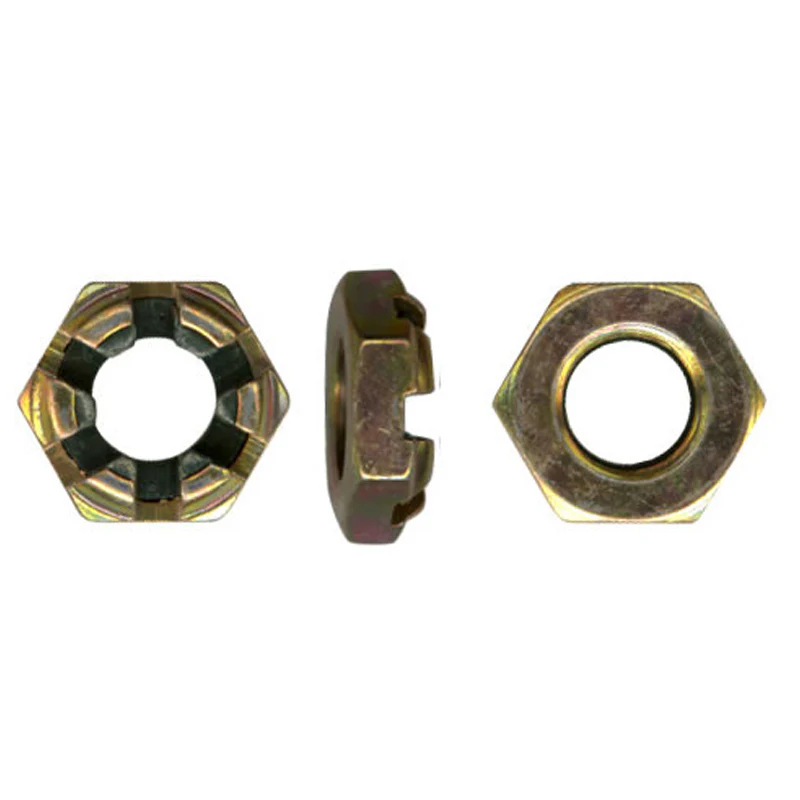

Mili Std - Steel Nut, Self Locking, Slotted, Hexagon | MS17825-4

• Thread Class : 3B
• Thread Direction : Right-Hand
• Locking Feature : Prevailing Torque With Nonmetallic Insert
• Nut Style : Slotted, Hexagon
• Nut Height : 0.266 Inches Minimum And 0.296 Inches Maximum
• Width Across Flats : 0.430 Inches Minimum And 0.439 Inches Maximum
• Temp Rating : 250.0 Deg Fahrenheit Nominal
• Thread Series : Unjf
• Thread Quantity Per Inch : 28
• Nominal Thread Size : 0.250 Inches
• Bearing Surface Type : Washer Faced
• Material : Plastic Polyamide Locking Insert
• Material : Steel Nut
• Surface Treatment : Cadmium Overall Except Insert And Chromate Overall Except Insert
• Surface Treatment Document And Classification : Qq-P-416,Type 2,Class 2 Fed Spec Single Treatment Response Overall Except Insert
