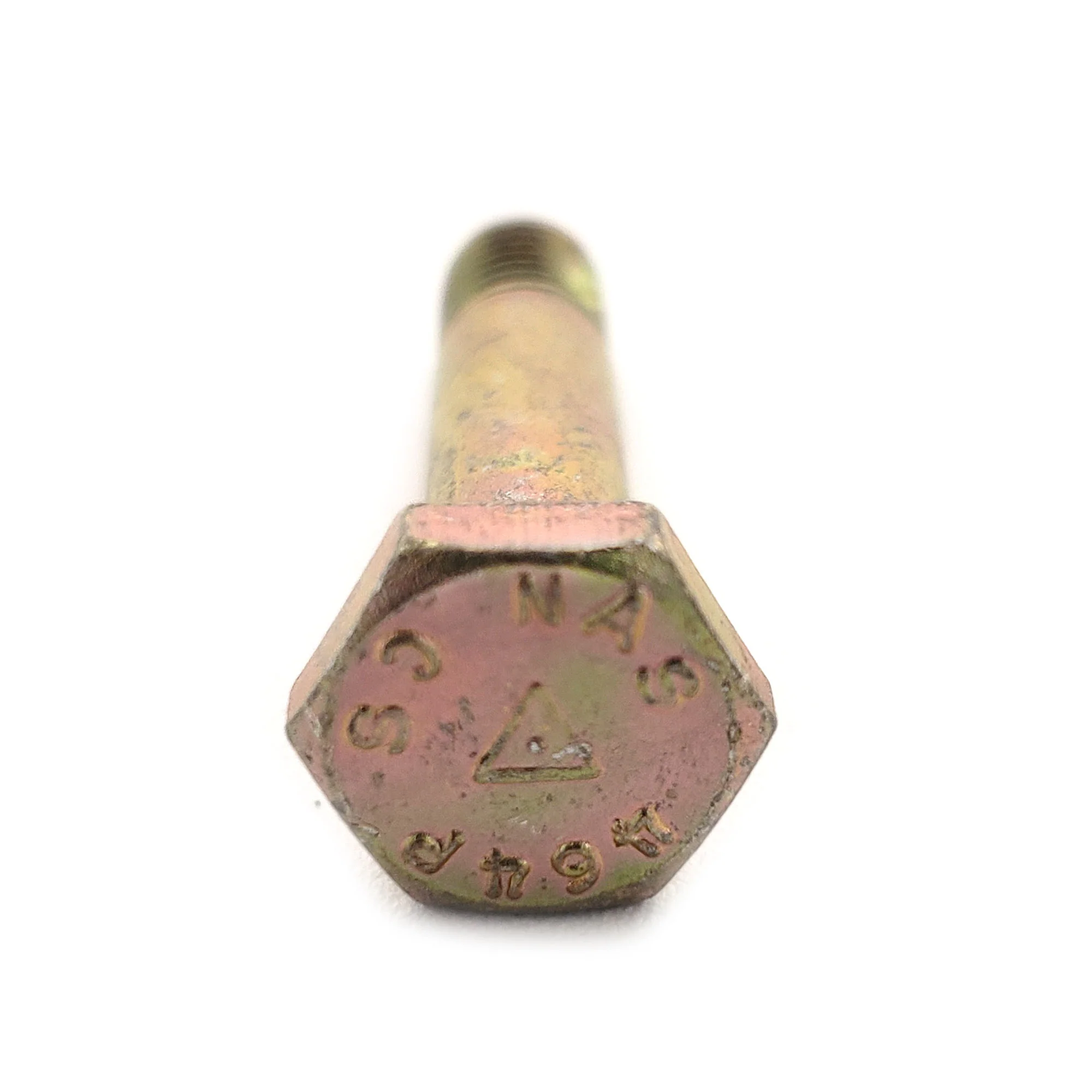

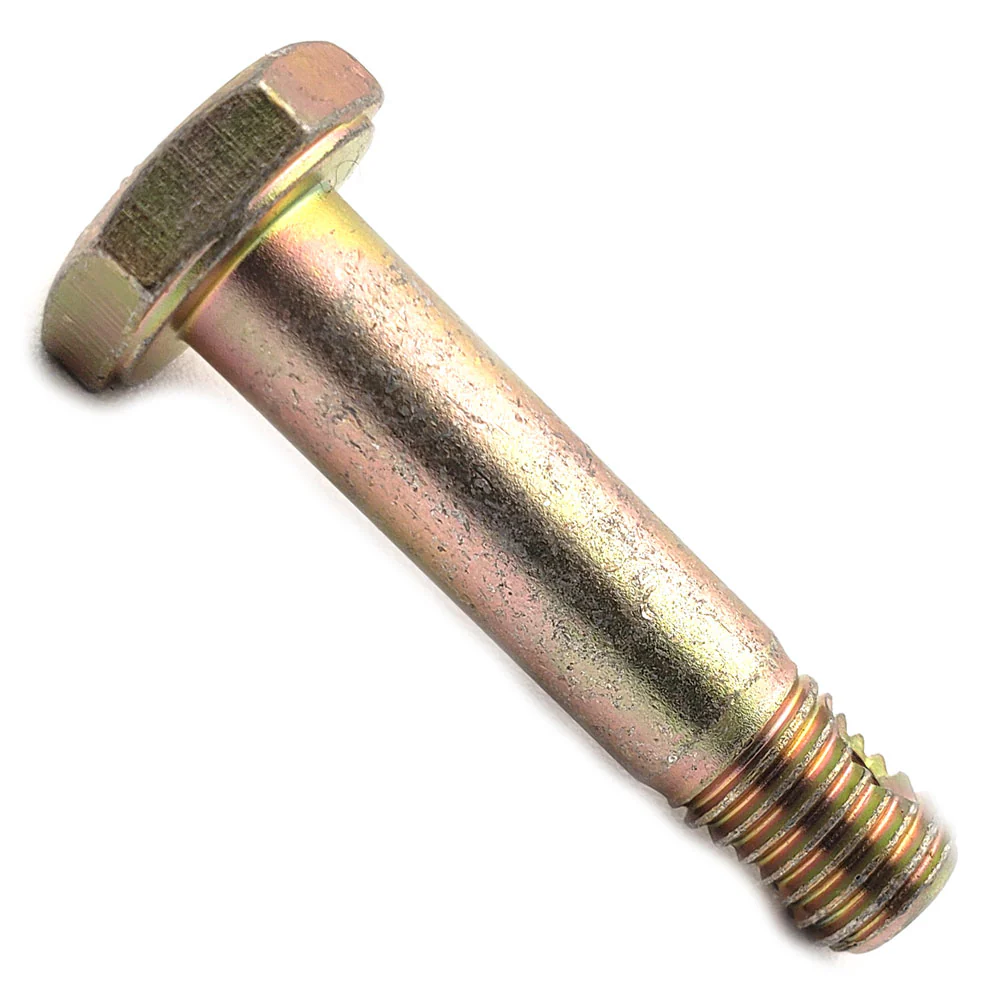

National Aerospace Std - Steel Bolt, Shear | NAS464P4-12

•  Thread Class:  3A
•  Thread Direction:  Right-Hand
•  Thread Length:  0.327 Inches Minimum And 0.374 Inches Maximum
•  Fastener Length:  1.078 Inches Minimum And 1.125 Inches Maximum
•  Head Style:  Hexagon
•  Head Height:  0.109 Inches Minimum And 0.141 Inches Maximum
•  Width Between Flats:  0.428 Inches Minimum And 0.440 Inches Maximum
•  Grip Diameter:  0.2483 Inches Minimum And 0.2492 Inches Maximum
•  Shank Unthreaded Hole Diameter:  0.076 Inches Nominal First Hole
•  Single Shear Strength:  4650 Pounds Per Square Inch
•  Nominal Thread Diameter:  0.250 Inches
•  Grip Length:  0.750 Inches Nominal
•  Thread Quantity Per Inch:  28
•  Minimum Tensile Strength:  160000 Pounds Per Square Inch
•  Hardness Rating:  36.0 Rockwell C Minimum Overall And 40.0 Rockwell C Maximum Overall
•  Distance From Head Largest Bearing Surface To Shank Hole Center:  0.921 Inches Minimum First Hole And 0.954 Inches Maximum First Hole
•  Material:  Steel Comp 4140 Overall Or Steel Comp E4340 Overall Or Steel Comp 6150 Overall Or Steel Comp 8735 Overall Or Steel Comp 8740 Overall
•  Material Document And Classification:  Mil-S-5626 Mil Spec 1St Material Response Overall Or Mil-S-5000 Mil Spec 2Nd Material Response Overall Or Mil-S-8503 Mil Spec 3Rd Material Response Overall Or Mil-S-6098 Mil Spec 4Th Material Response Overall Or Mil-S-6049 Mil Spec 5Th Material Responseoverall
•  Surface Treatment:  Cadmium Overall And Chromate Overall
•  Surface Treatment Document And Classification:  Qq-P-416 Ty 2 Cl 3 Fed Spec Single Treatment Response Overall
•  Thread Series Designator:  Unf
•  Specification/Standard Data:  80205-NAS464 Professional/Industrial Association Standard
