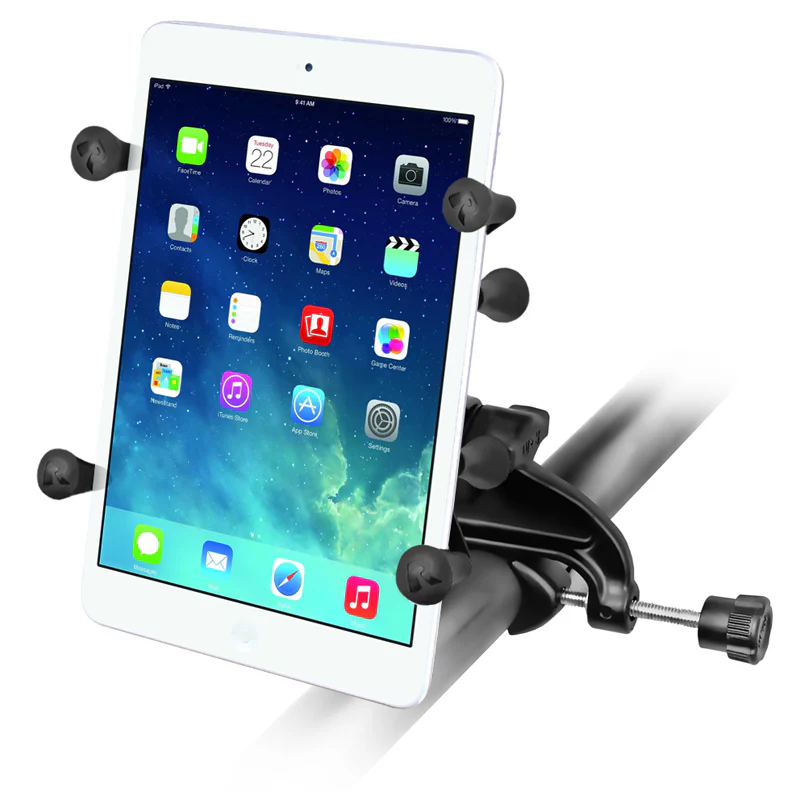

The RAM-B-121-UN8U consists of a yoke clamp base, double socket arm system and universal spring loaded X-Grip® II holder for 7" tablets. The yoke clamp base will fit rails from 0.625" to a maximum of 1.25". The 1" rubber ball is positioned at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you can move the mount to your optimum viewing position. The spring loaded X-Grip® II holder expands and contracts, allowing for a perfect custom fit of your 7" tablet. Included are extra easy access grip knobs, located on the back of the holder for quick release of your tablet.

X-Grip® II Holder Dimensions:
Minimum Width = 2.25" (Devices 2.25" in width must be a minimum of 7" in height to fit)
Maximum Width = 5.75"
Depth = 0.875"

Clamp Base Dimensions:
Accommodates rails from 0.625" to 1.25" in diameter

Features:
1. Spring loaded holder expands and contracts for perfect fit of your tablet
2. Rubber coated tips will hold your tablet firm and stable
3. Versatility of holder allows for attachment to many RAM 1" socket mounts
4. Socket technology allows for multiple adjustment angles and articulation of your tablet
5. Easy access grip knobs, located on the back of the holder for quick release of your tablet
6. Lifetime warranty
7. Made in U.S.A.

Material:
High Strength Composite, Powder Coated Marine Grade Aluminum & Marine Grade Stainless Steel Components

Ball Size:
1" Rubber Ball "B" Size

Note:
The "U" in the part number reflects product packaged in poly bag.
