T-Motor CINE66 2812 1155KV Brushless Motor for Cinematic FPV Drones

The T-Motor CINE66 is built for demanding cinematic FPV applications, offering exceptional power and stability in a lightweight form. Engineered for 4–6S LiPo setups, this 1155KV brushless motor provides smooth, controlled thrust perfect for professional aerial videography and long-range flights.

• High Torque & Efficiency: Designed with a 2812 stator and 1155KV rating to deliver reliable performance for heavier cine builds.
• Optimized for Cinematic Drones: Smooth throttle response ideal for capturing stabilized footage with GoPro or action cameras.
• Durable Build Quality: Precision-balanced and crafted for durability during high-intensity flights and rough landings.
• 4–6S LiPo Compatibility: Versatile voltage range for various FPV configurations and flying styles.
• Easy Installation: Standard 5mm shaft diameter and 16×16mm mounting pattern fit most 5”–7” cinewhoops and frames.

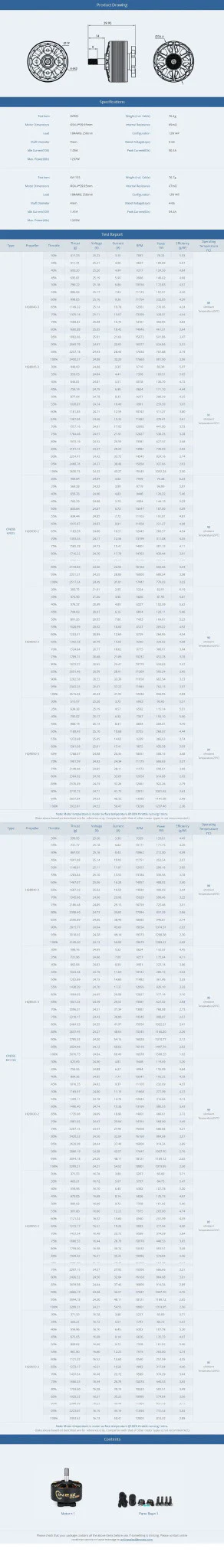

Technical Specifications

• Model: CINE66 2812
• KV Rating: 1155KV
• Configuration: 12N14P
• Input Voltage: 4–6S LiPo
• Internal Resistance: 74mΩ
• Max Power (60s): 989W
• Peak Current (60s): 41.6A
• Idle Current (10V): 1.2A
• Motor Dimensions: 34.4 × 26.3mm
• Shaft Diameter: 5mm
• Mounting Pattern: 16×16mm
• Weight (Incl. Cables): 58.5g
• UPC: 6971360358749

Enhance your aerial cinematography with the precision and performance of the T-Motor CINE66—trusted by FPV professionals worldwide.
