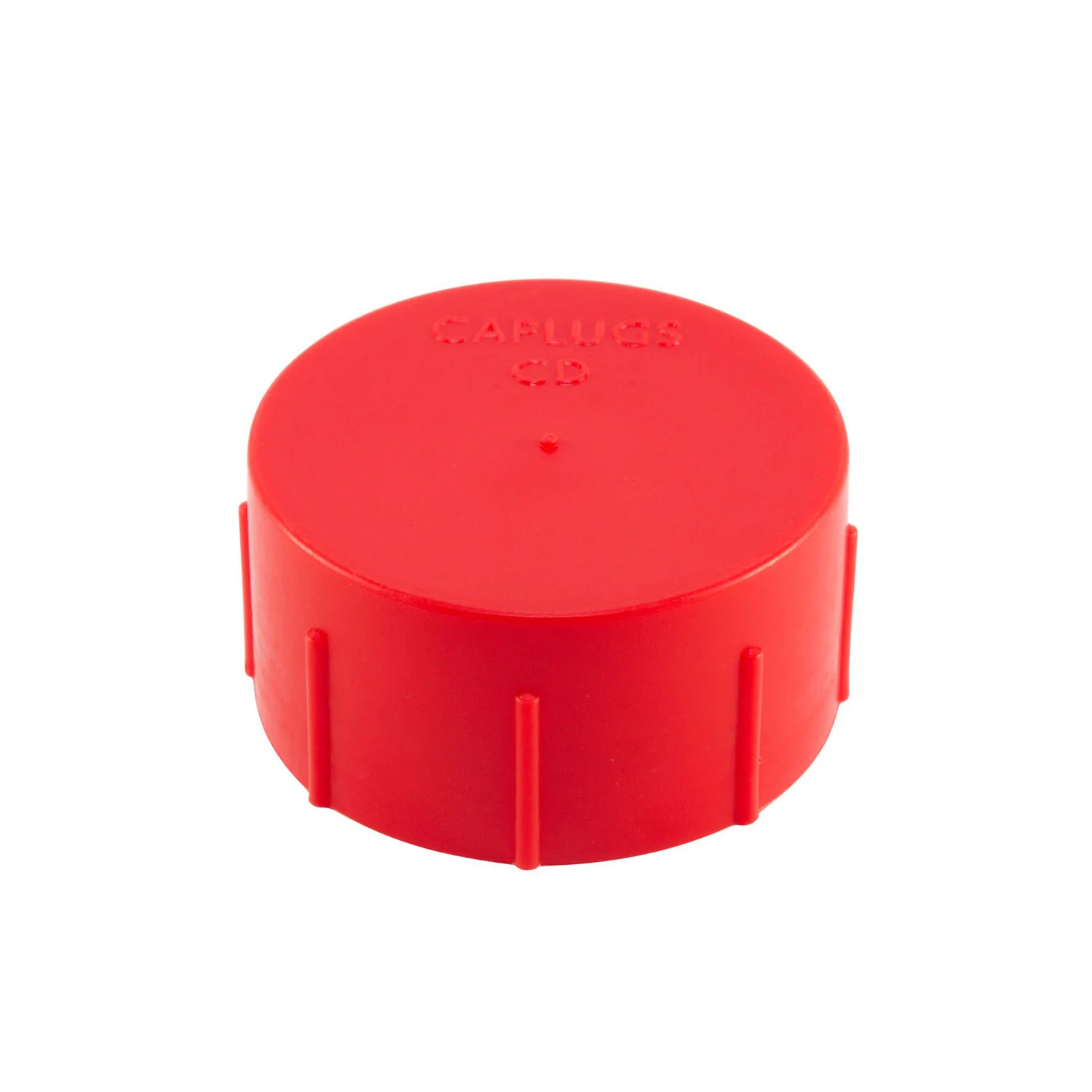

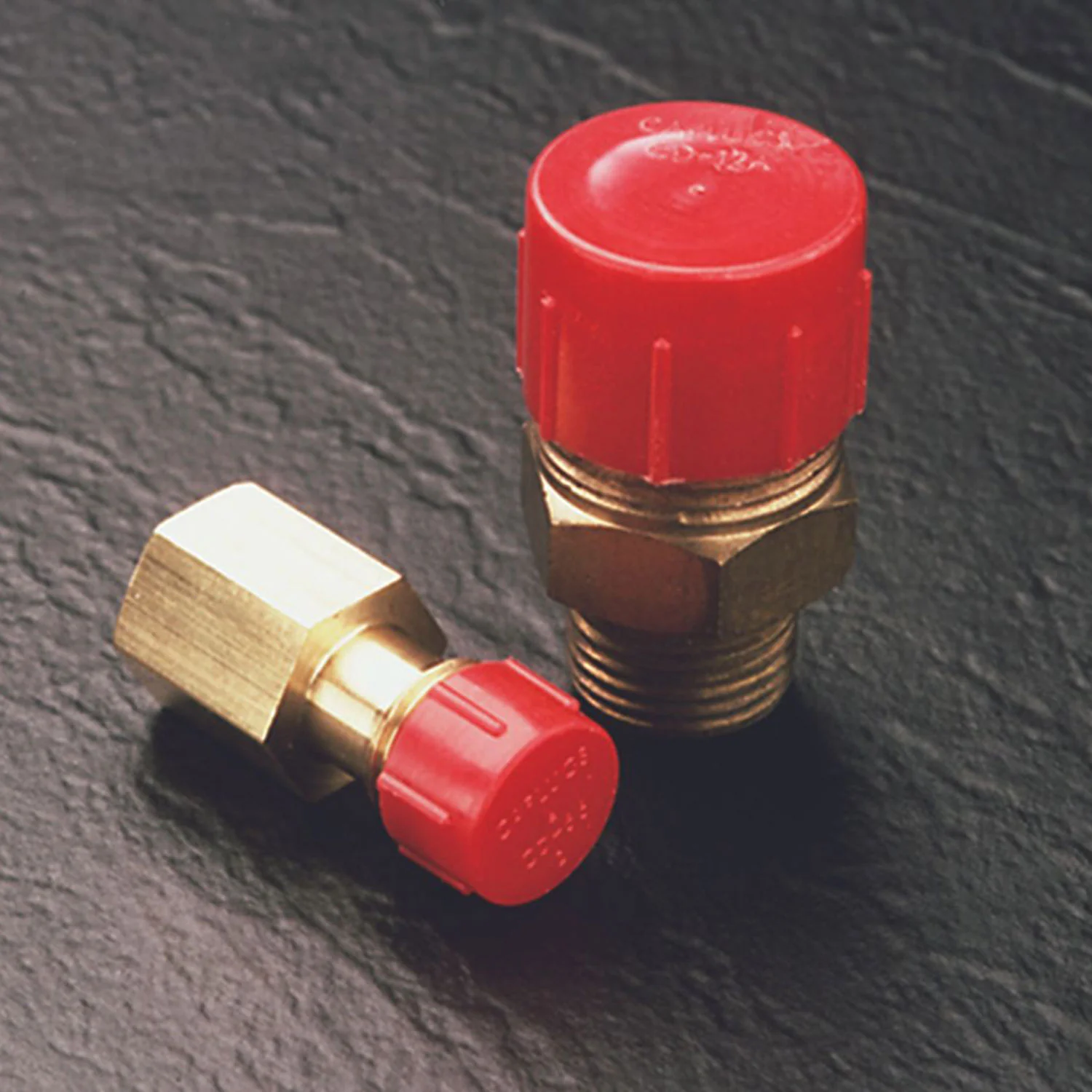

CD Series threaded plastic caps seal flared JIC fittings exceptionally well against dirt and moisture.  They can also be used for masking during painting and plating and knurled for ease of application.

• Material: Low-density polyethylene
• Service Temperature: -94 - 175° F (-70 - 79° C)
• Standard Color: Red

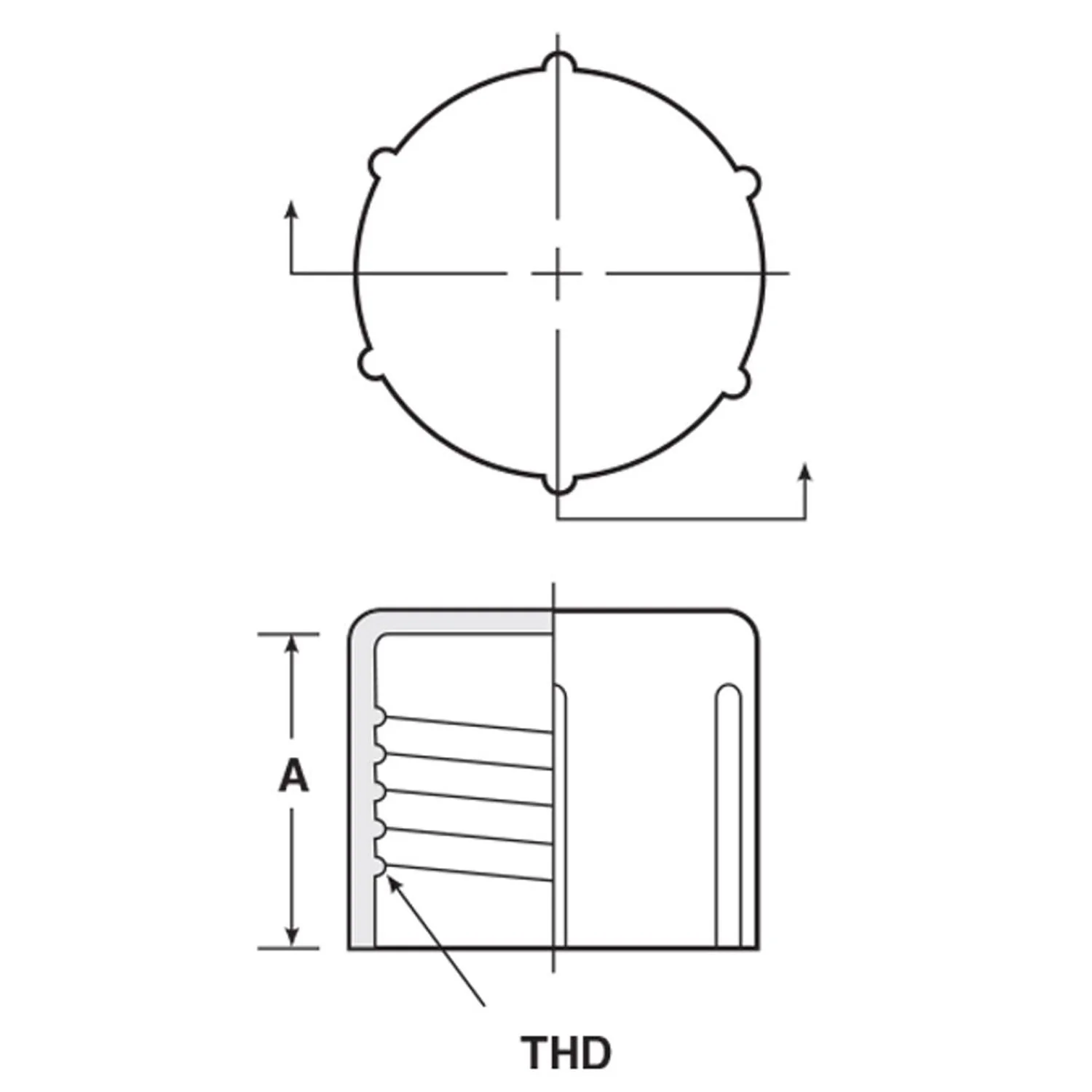

Item #	To Fit Nominal Tubing Size (In)	To Fit Thread Size (In)	Dim A (In)	No. of Knurls
CD-2	–	1/4 – 36	0.22	4
CD-3	3/16	3/8 – 24	0.47	4
CD-4	1/4	7/16 – 20	0.47	4
CD-41	1/4	7/16 – 24	0.30	4
CD-5	5/16	1/2 – 20	0.47	6
CD-TC-40	5/16	1/2 – 20	0.31	6
CD-TC-42	5/16	1/2 – 20	0.88	6
CD-6	3/8	9/16 – 18	0.53	6
CD-TC-6	3/8	5/8 – 18	0.47	6
CD-6A	3/8	5/8 – 18	0.53	6
CD-TC-63	3/8	5/8 – 18	0.75	6
CD-67	–	5/8 – 24	0.41	6
CD-8	1/2	3/4 – 16	0.57	6
CD-TC-8-R	1/2	3/4 – 16	0.63	6
CD-TC-82	–	3/4 – 18	0.69	6
CD-TC-9	–	3/4 – 20	0.50	6
CD-10	5/8	7/8 – 14	0.68	6
CD-101	5/8	7/8 – 18	0.44	6
CD-TC-111	5/8	7/8 – 18	0.78	6
CD-TC-100	5/8	7/8 – 20	0.72	6
CD-11	–	1 – 14	0.78	8
CD-TC-120	–	1 – 20	0.78	8
CD-12	3/4	1-1/16 – 12	0.75	8
CD-TC-14	3/4	1-1/16 – 14	0.75	8
CD-TC-15	–	1-1/8 – 18	0.47	8
CD-14	7/8	1-3/16 – 12	0.94	6
CD-16	1	1-5/16 – 12	0.84	8
CD-TC-17	–	1-1/4 – 18	0.47	8
CD-TC-18	–	1-5/16 – 12	0.88	8
CD-TC-19	–	1-3/8 – 18	0.47	8
CD-18	–	1-1/2 – 12	0.75	8
CD-TC-20	1-1/4	1-5/8 – 12	0.91	8
CD-22	–	1-3/4 – 12	0.94	8
CD-TC-21	1-1/2	1-7/8 – 12	1.00	8
CD-400	–	3 – 12	1.16	12
