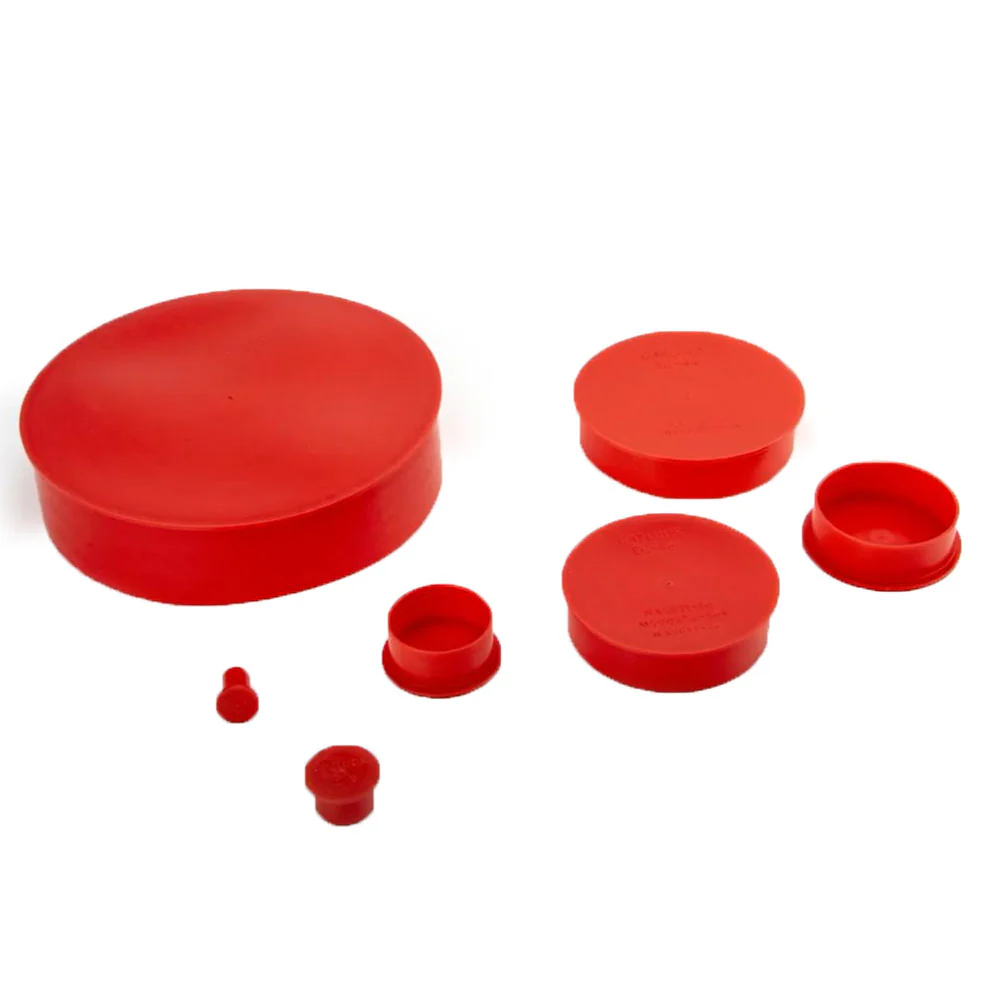

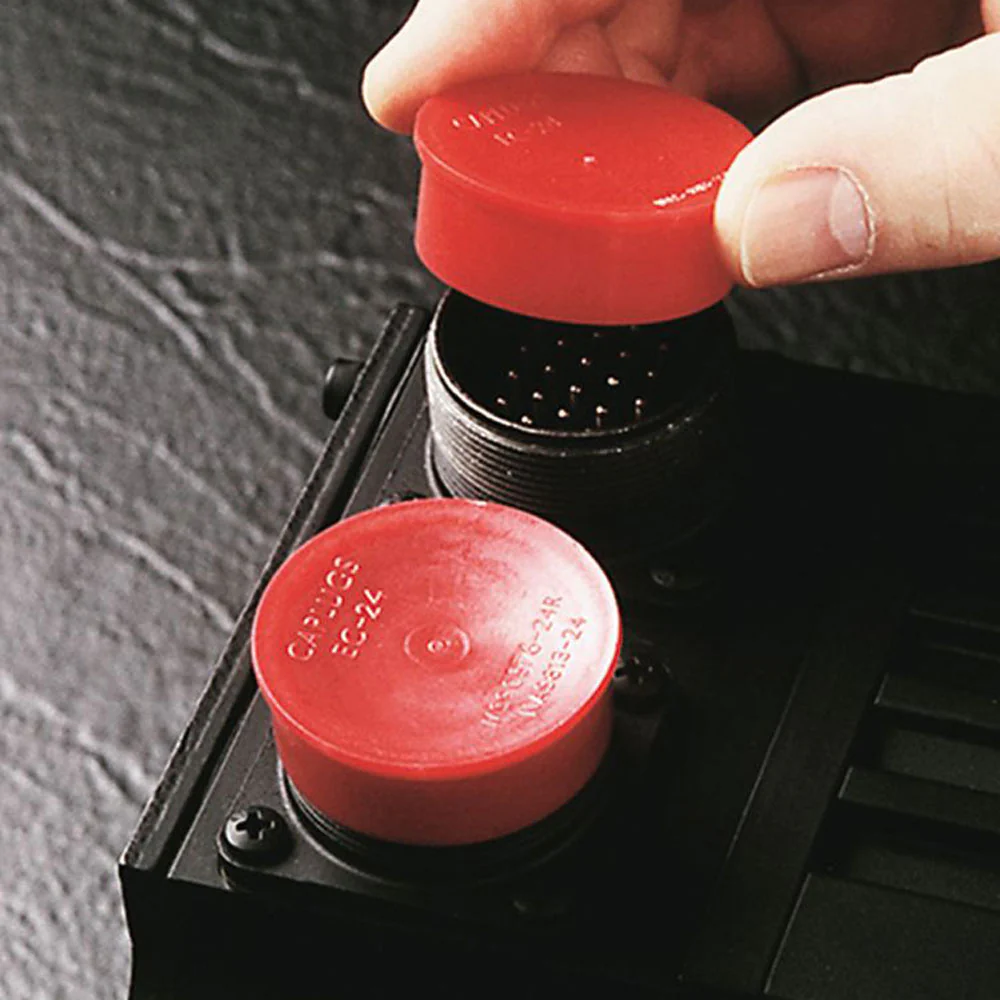

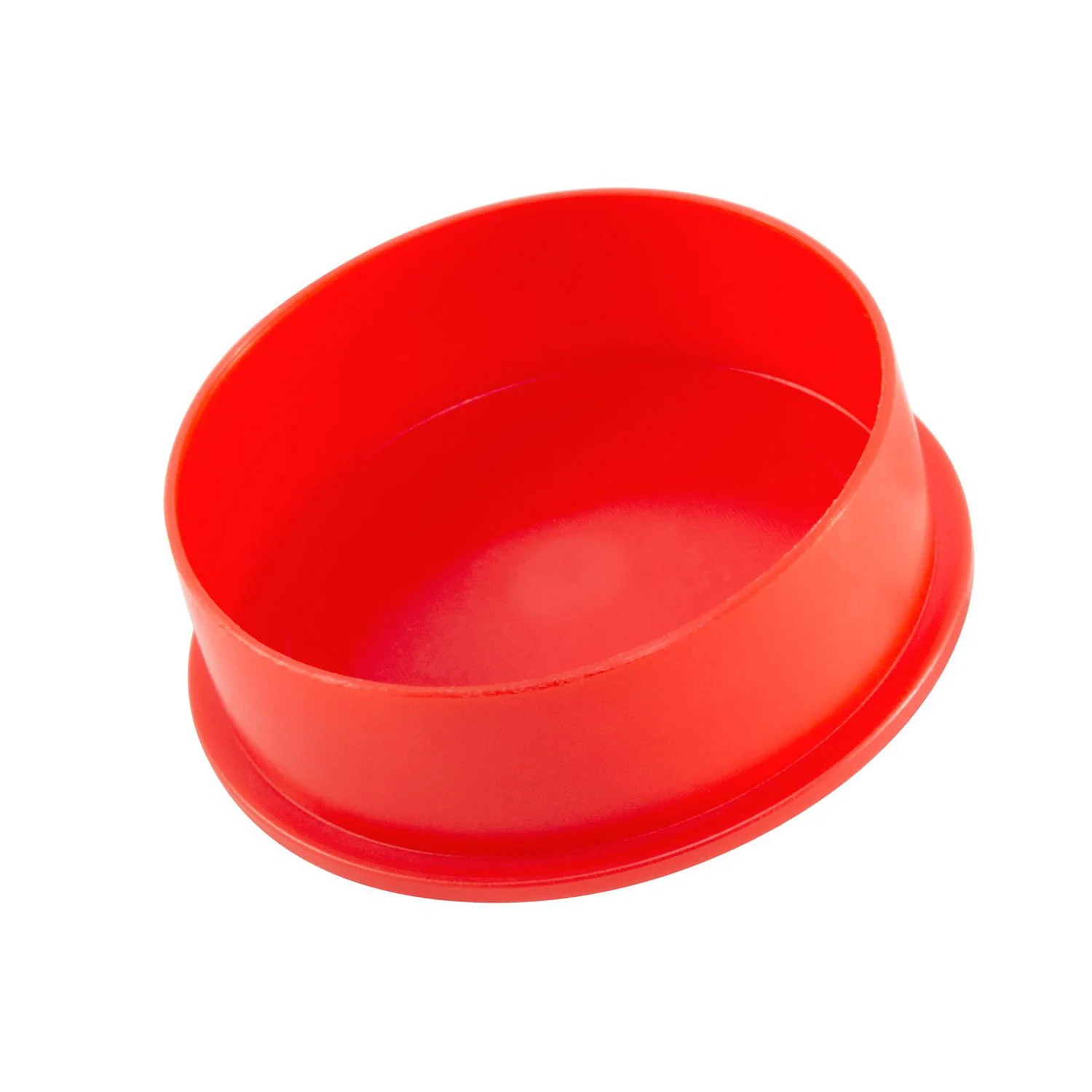

EC Series caps are designed to fit threaded connectors. This series is designed for easy application and removal in areas not readily accessible.

Can be installed over threads or cylindrical surfaces

• Material: Low-density polyethylene
• Service Temperature: -94 - 175° F (-70 - 79° C)
• Standard Color: Red
• Applicable Specs: NAS 83

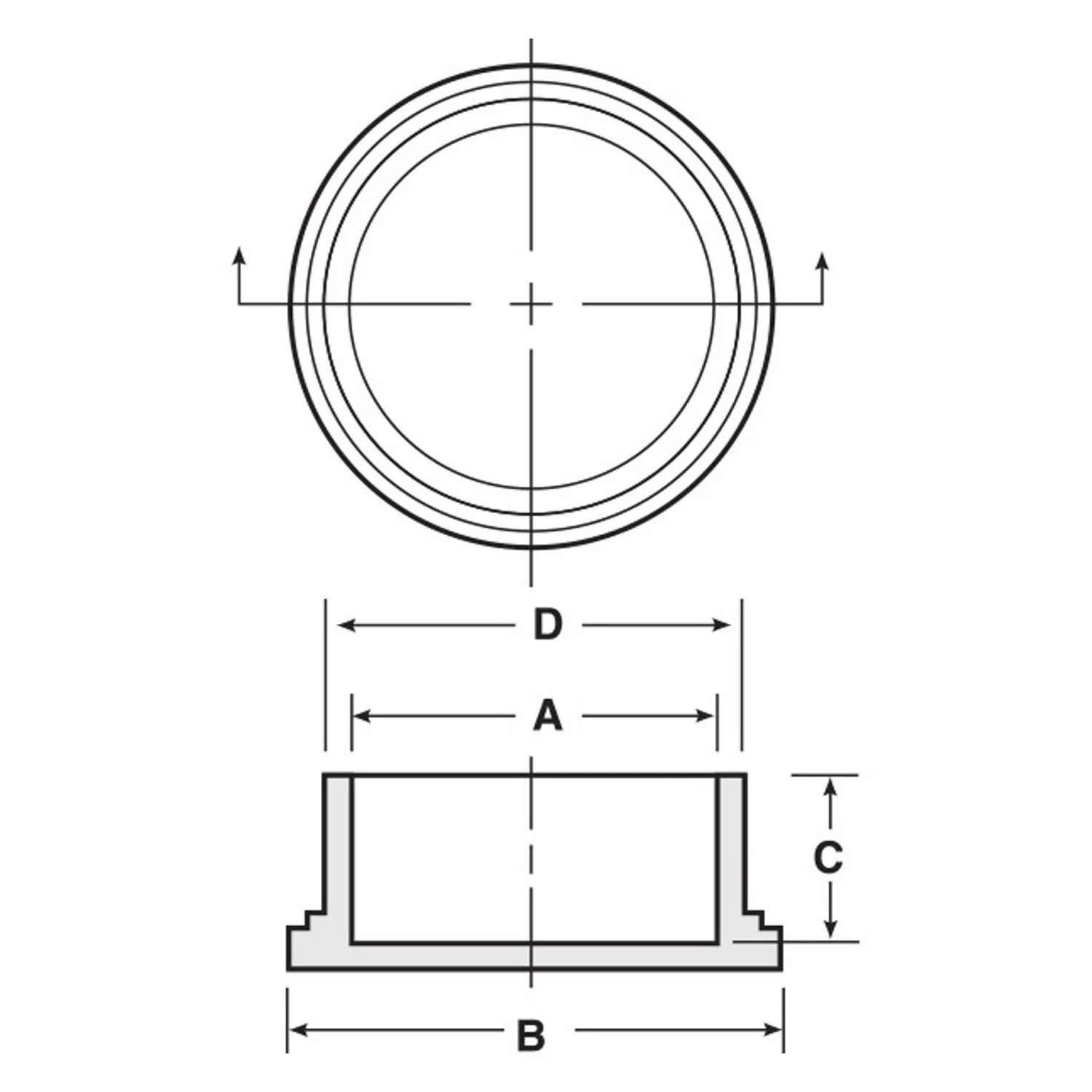

Item #	To Cap Nominal Thread Size	Dim A (In)	Dim B (In)	Dim C (In)	Dim D (In)
EC-4	1/4	0.246	0.48	0.50	0.31

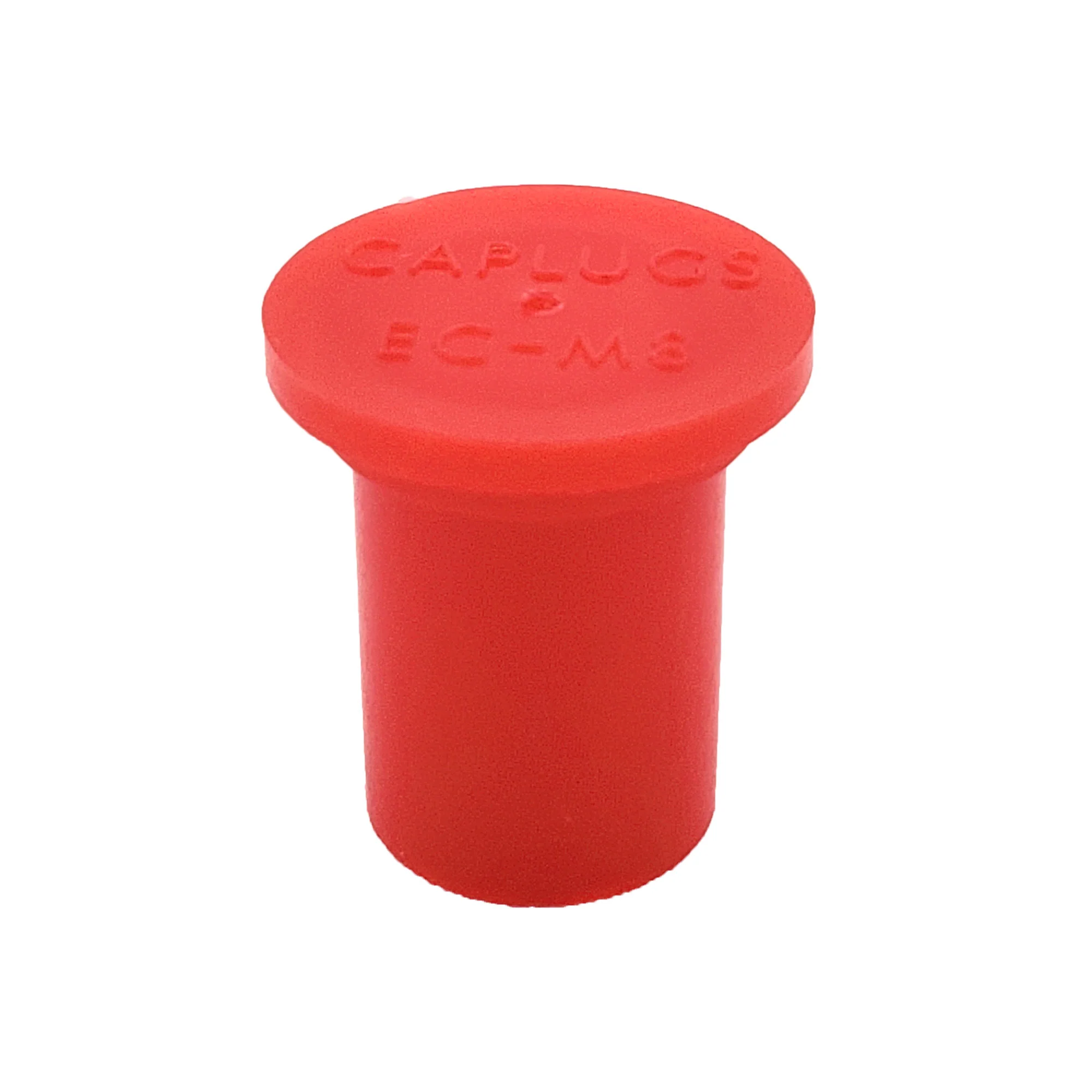

EC-M8	M8	0.309	0.55	0.56	0.37
EC-5	5/16	0.308	0.55	0.56	0.37
EC-6	3/8	0.369	0.62	0.50	0.43
EC-8	1/2	0.480	0.74	0.50	0.54
EC-9	9/16	0.551	0.78	0.44	0.61
EC-10	5/8	0.605	0.84	0.50	0.66
EC-12	3/4	0.720	0.97	0.50	0.77
EC-14	7/8	0.850	1.13	0.50	0.90
EC-15	-	0.930	1.20	0.50	1.01
EC-16	1	0.973	1.22	0.50	1.03
EC-18	1 1/8	1.093	1.33	0.56	1.15
EC-19	1 3/16	1.188	1.40	0.56	1.23
EC-20	1 1/4	1.231	1.47	0.56	1.30
EC-22	1 3/8	1.340	1.59	0.56	1.41
EC-23	1 7/16	1.428	1.65	0.56	1.46
EC-24	1 1/2	1.463	1.70	0.56	1.53
EC-25	1 9/16	1.528	1.73	0.48	1.59
EC-26	1 5/8	1.613	1.91	0.55	1.71
EC-28	1 3/4	1.715	1.95	0.56	1.79
EC-32	2	1.965	2.22	0.56	2.04
EC-36	2 1/4	2.215	2.43	0.60	2.29
EC-40	2 1/2	2.456	2.68	0.62	2.52
EC-44	2 3/4	2.720	2.96	0.60	2.81
EC-48	3	2.960	3.23	0.60	3.05
EC-64	4	3.940	4.16	1.00	4.00
EC-80	5	4.944	5.12	1.25	5.00
