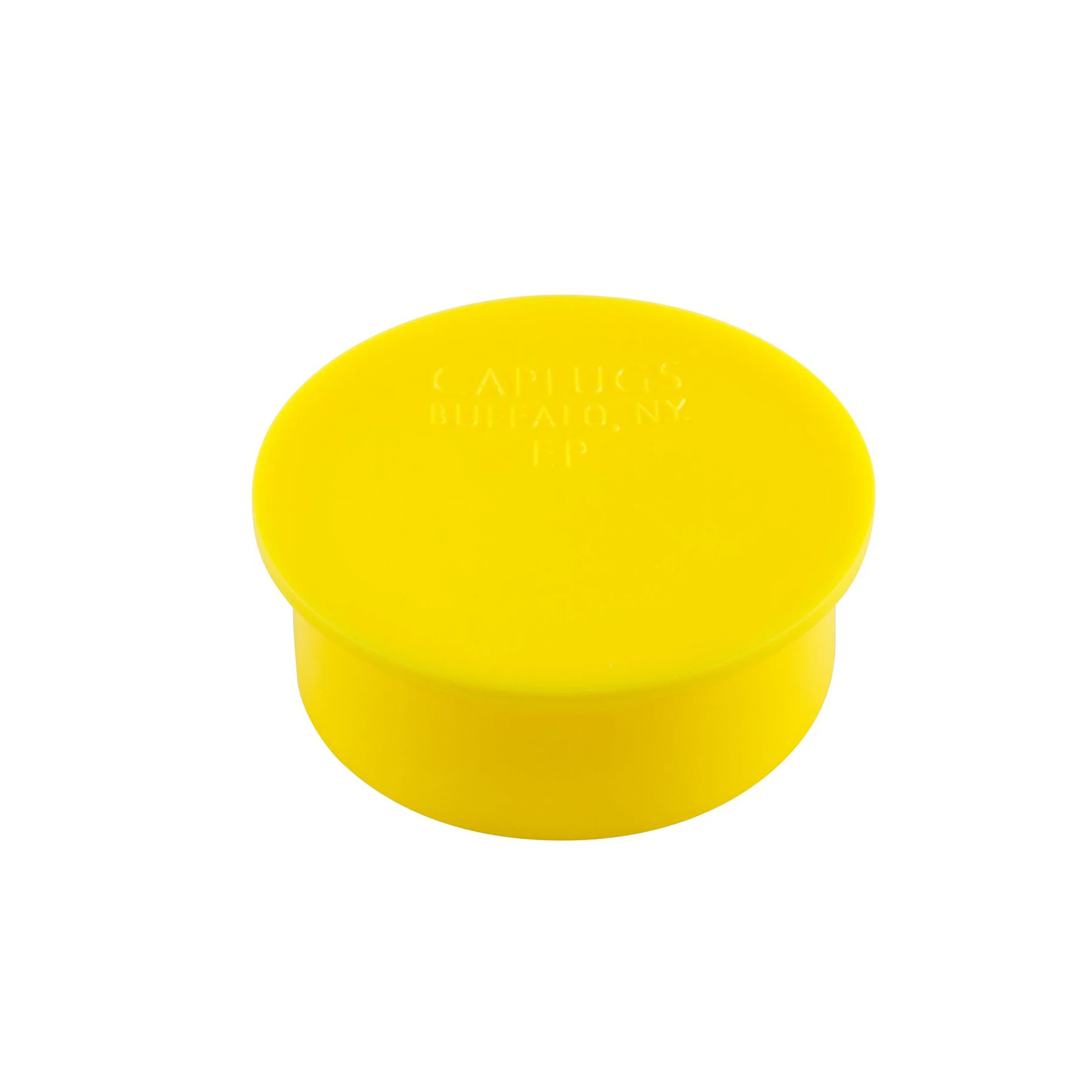

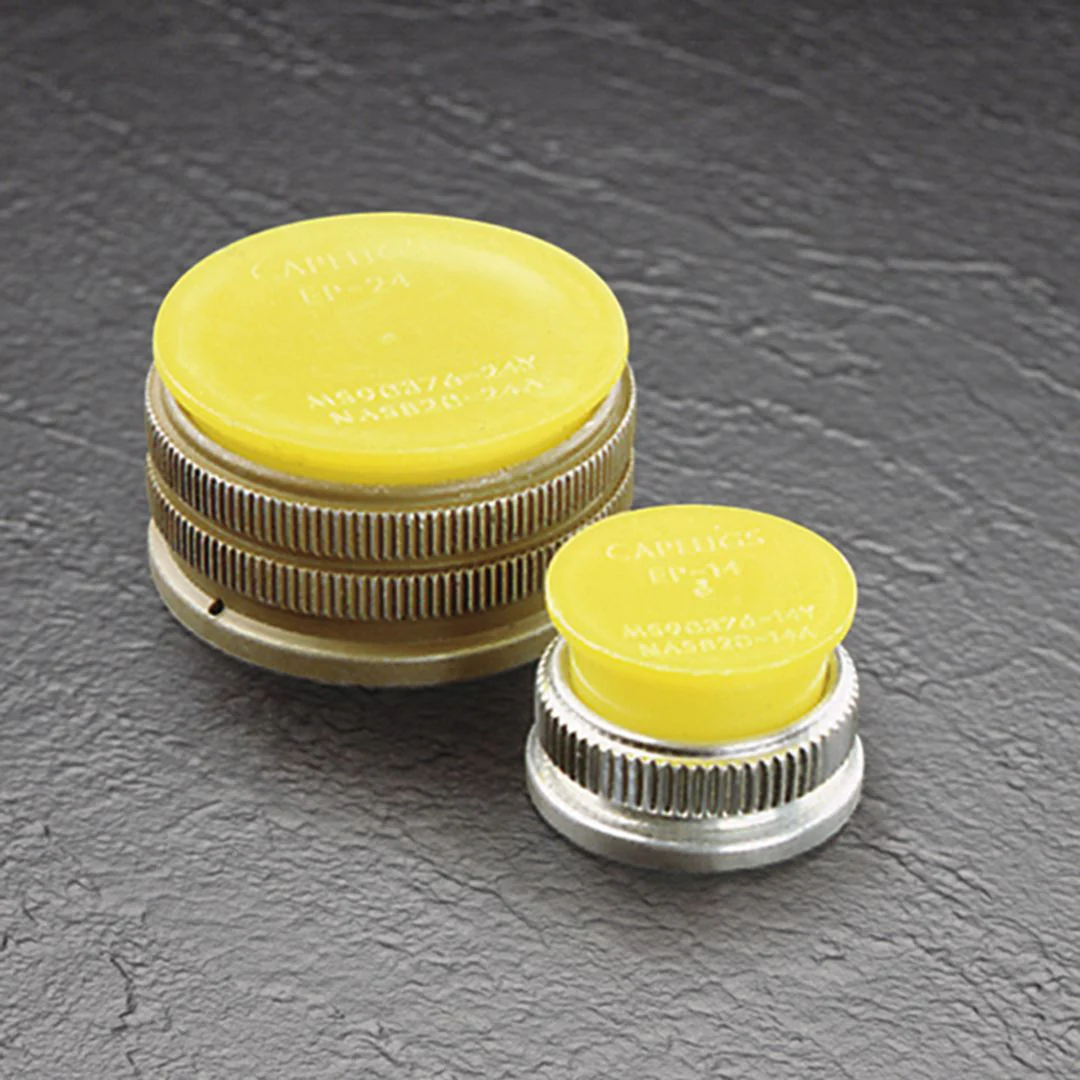

EP Series plugs from Caplugs are for threaded connectors and are designed for easy application and removal in inaccessible areas.

• Protects connections from dust and impact
• It can be installed to fit threaded or smooth cylindrical surfaces.

Specifications:

• Material: Low-density polyethylene
• Service Temperature: -94 - 175° F (-70 - 79° C)
• Standard Color: Yellow
• Applicable Specs: NAS 837

Item Number	Plug Nominal Thread Size	Dim A (In)	Dim B (In)	Dim C (In)	Dim D (In)
EP-8	1/2 – 28	0.483	0.67	0.63	0.41
EP-10	5/8 – 24	0.595	0.75	0.63	0.53
EP-12	3/4 – 20	0.715	0.86	0.63	0.66
EP-14	7/8 – 20	0.845	1.03	0.63	0.79
EP-16	1 – 20	0.963	1.12	0.63	0.89
EP-18	1-1/8 – 18	1.088	1.25	0.63	1.03
EP-20	1-1/4 – 18	1.215	1.4	0.63	1.15
EP-22	1-3/8 – 18	1.34	1.5	0.63	1.27
EP-24	1-1/2 – 18	1.46	1.64	0.63	1.39
EP-25	1-5/8 – 16	1.58	1.81	0.63	1.54
EP-28	1-3/4 – 18	1.718	1.87	0.63	1.64
EP-32	2 – 18	1.97	2.13	0.63	1.89
EP-36	2-1/4 – 16	2.21	2.34	0.63	2.14
EP-40	2-1/2 – 16	2.45	2.6	0.63	2.38
EP-44	2-3/4 – 16	2.7	2.88	0.63	2.63
MS-48-Y	3 – 16	2.95	3.12	0.63	2.88
