Mili Std - Stainless Steel Screw, Machine | MS24694C54

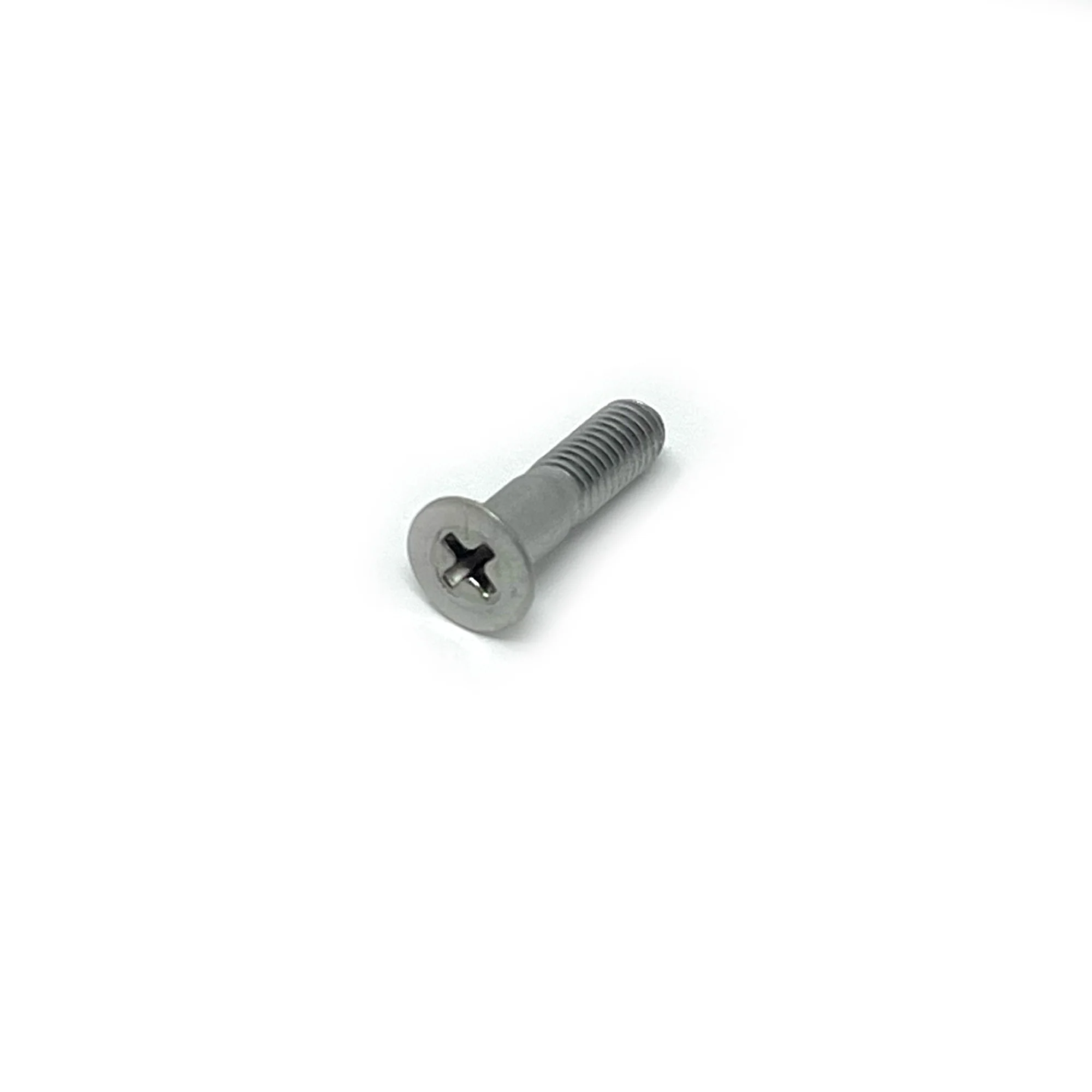

MS24694C54, as the name suggests, is a machine screw with a countersunk head. It is made of corrosion resistant steel (CRES) and has a passivated finish. Check the features for more information.

Specifications

• Thread Class: 3A
• Thread Direction: Right-Hand
• Thread Length: 0.376 Inches Minimum And 0.516 Inches Maximum
• Fastener Length: 0.766 Inches Minimum And 0.812 Inches Maximum
• Head Style: Flat Countersunk
• Head Diameter: 0.327 Inches Minimum And 0.385 Inches Maximum
• Internal Drive Style: Cross Recess Type 1
• Nominal Thread Diameter: 0.190 Inches
• Thread Quantity Per Inch: 32
• Minimum Tensile Strength: 85000 Pounds Per Square Inch
• Countersink Angle: 99.0 Degrees Minimum And 101.0 Degrees Maximum
• Screw Material: Steel Comp 302 Or Steel Comp 304
• Screw Material Document And Classification: 66 Fed Std All Material Responses
• Screw Surface Treatment: Passivate
• Screw Surface Treatment Document And Classification: Qq-P-35 Fed Spec Single Treatment Response
• Thread Series Designator: Unf
