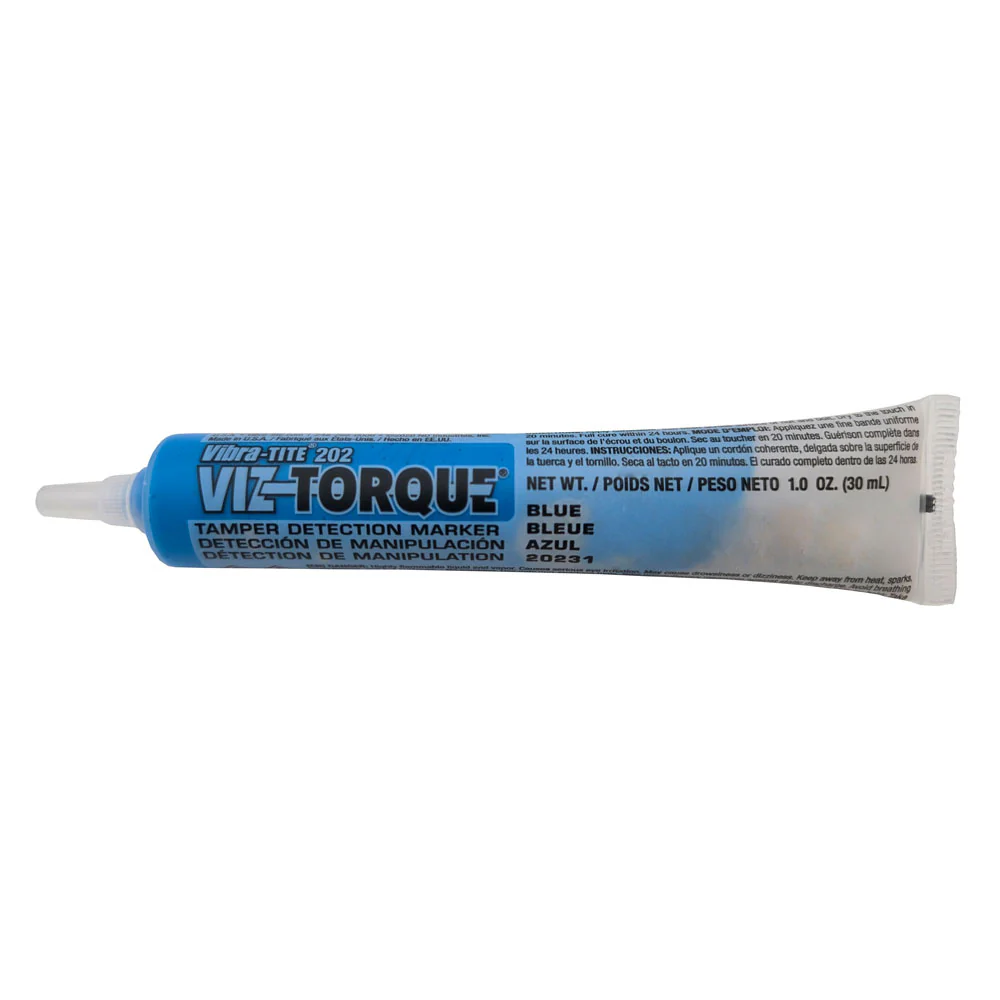

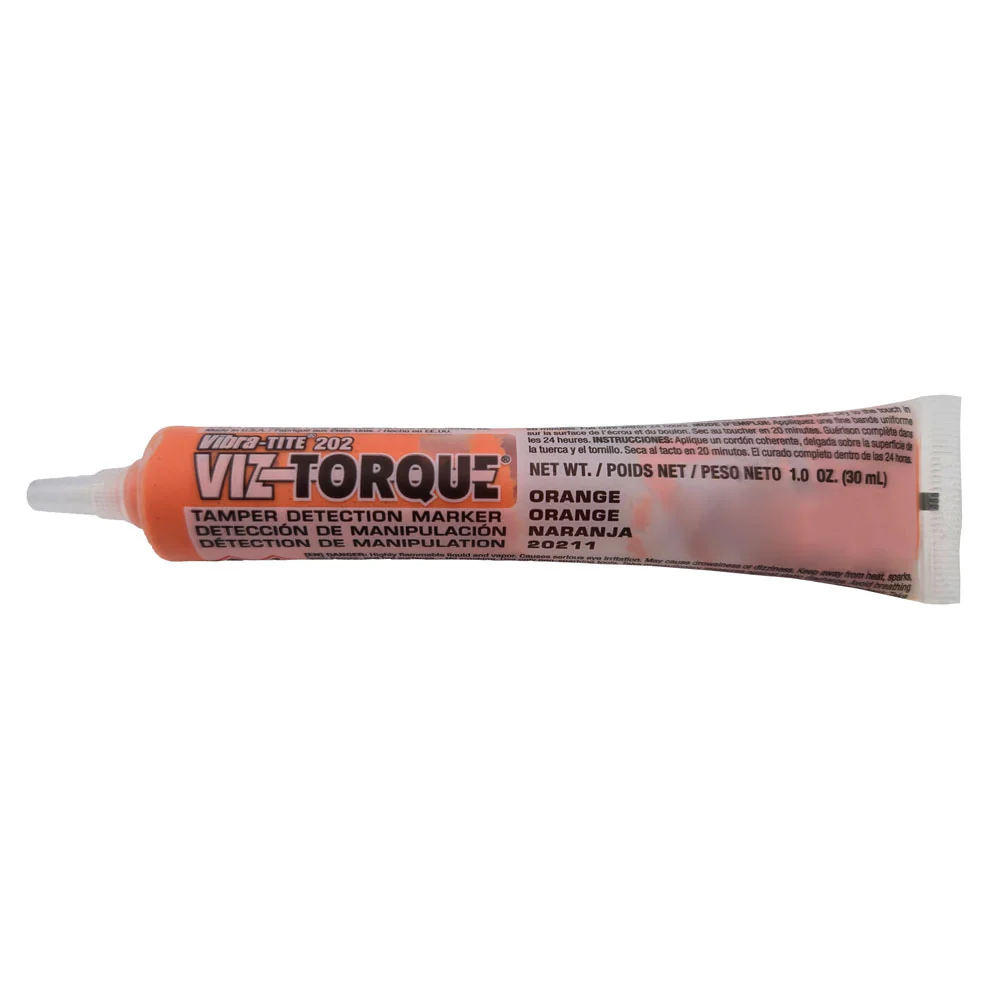

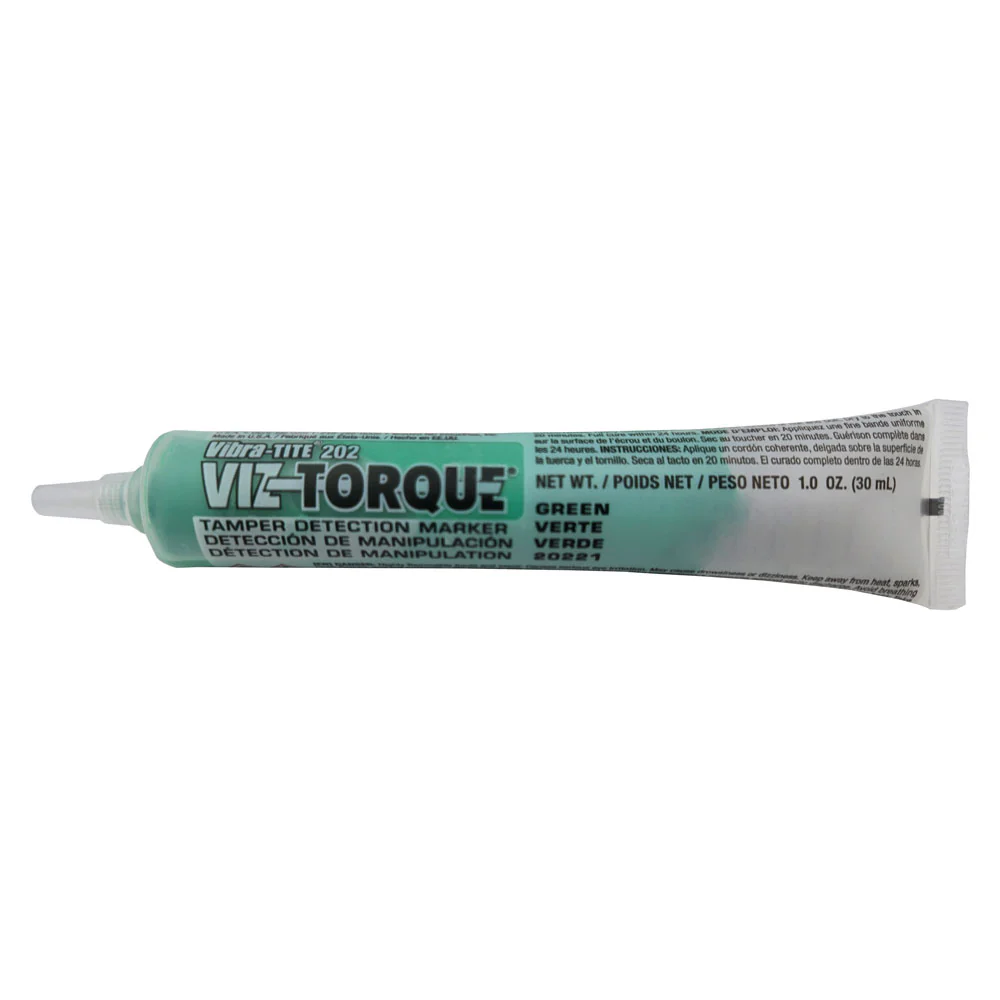

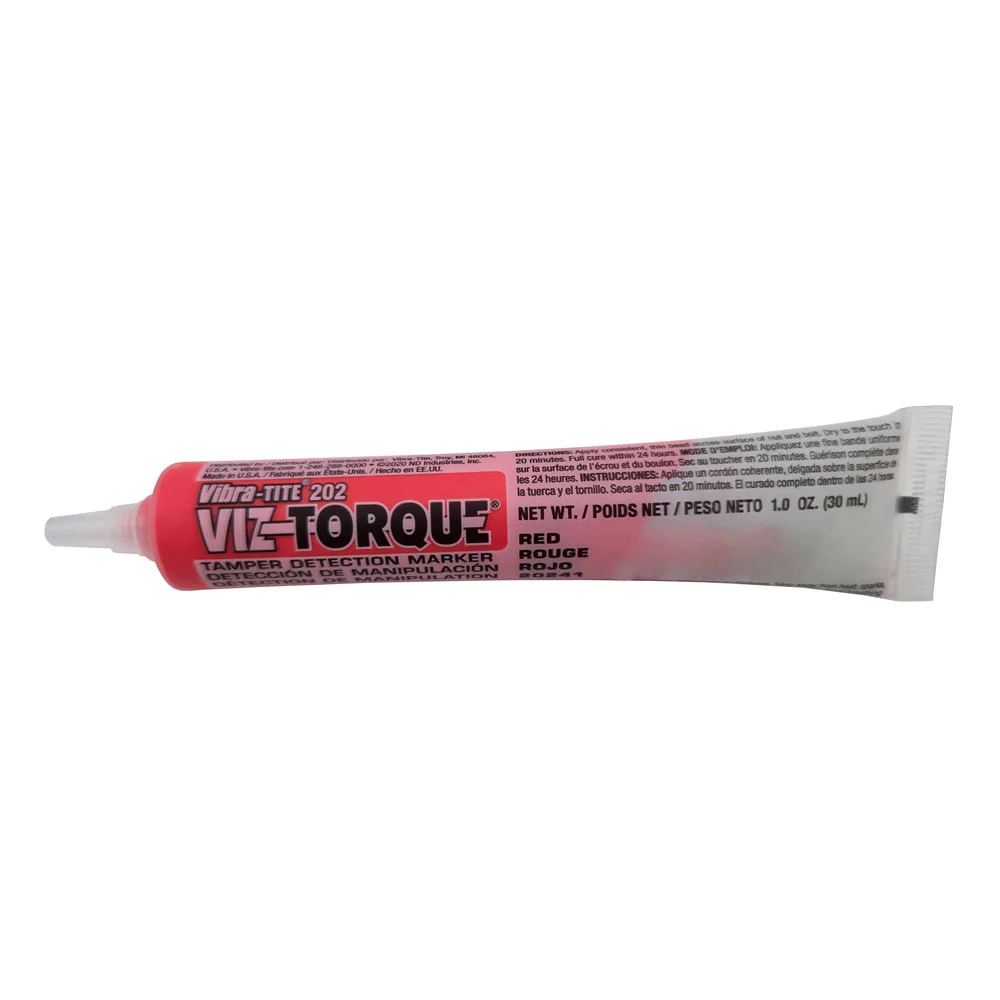

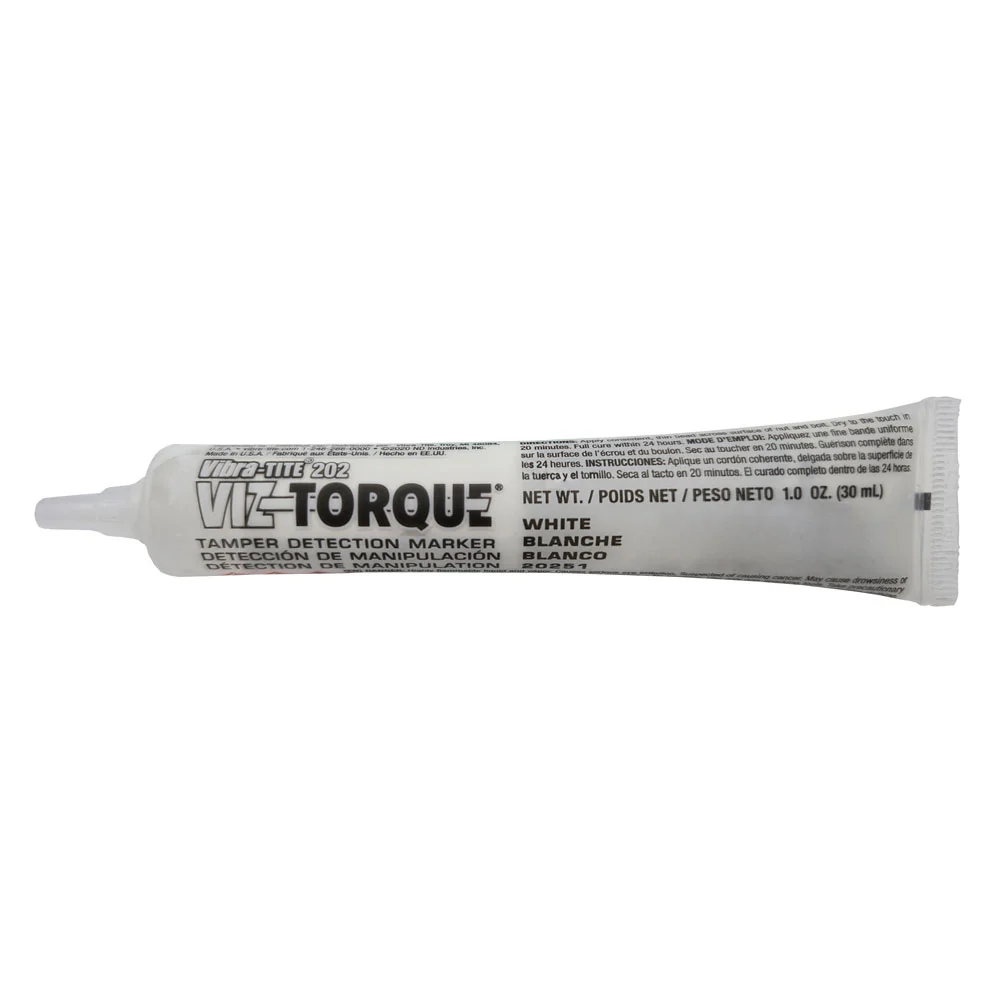

Vibra-Tite Viz-Torque® 202
Viz-Torque 202 Tamper Detection Marker is an inspection paste used to visually detect torque movement due to vibratory loosening or tampering of fittings, assemblies, nuts, bolts and studs. This quick-drying tamper proof torque marker identifies whether a part has been moved from its original position. Once dried in place, Viz-Torque 202 Tamper Detection Marker creates a seal for torque movement detection, which allows the dry and brittle material stripe to break, providing proof of fastener tampering or loosening. Viz-Torque 202 has good adhesion to most metals when applied to a clean, dry surface and is available in a selection of highly visible colors.
| Size |
1 oz, 16 oz |
|---|---|
| Viscosity Range (cP) |
11000, 18000 |
| Temp Range Low (°F) |
-20 |
| Temp Range High (°F) |
300 |
| Tack Free TIme |
1 |
| Specific Gravity |
1.00 |
| Physical Form |
Paste |
| Open Time |
B |
| Key Substrates |
Metal |
| Function |
Tamper Detection Marker |
| Flammability |
Yes |
| Cure Type |
Solvent Evaporation |
| Competes with Loctite® |
Dykem® Cross Check® Dykem is a registered trademark and Cross Check is a trademark of Illinois Tool Works Inc. Delaware., F-900 Torque Seal®. Torque Seal is a registered trademark of Illinois Tool |
| Base Material |
Isopropanol |
| Shelf Life (months) |
12 |
| DOT Limited Quantites |
Cargo aircraft 60 L, Rail 5 L |
| Country of Origin |
USA |
| Certification Indicator |
D |
| Origin Criterion |
B |
| Qualification Method |
TS |
| HTS Code |
3208200000 |
| UNSPSC |
31211513 |
Vibra-Tite Viz-Torque® 202
Viz-Torque 202 Tamper Detection Marker is an inspection paste used to visually detect torque movement due to vibratory loosening or tampering of fittings, assemblies, nuts, bolts and studs. This quick-drying tamper proof torque marker identifies whether a part has been moved from its original position. Once dried in place, Viz-Torque 202 Tamper Detection Marker creates a seal for torque movement detection, which allows the dry and brittle material stripe to break, providing proof of fastener tampering or loosening. Viz-Torque 202 has good adhesion to most metals when applied to a clean, dry surface and is available in a selection of highly visible colors.
| Size |
1 oz, 16 oz |
|---|---|
| Viscosity Range (cP) |
11000, 18000 |
| Temp Range Low (°F) |
-20 |
| Temp Range High (°F) |
300 |
| Tack Free TIme |
1 |
| Specific Gravity |
1.00 |
| Physical Form |
Paste |
| Open Time |
B |
| Key Substrates |
Metal |
| Function |
Tamper Detection Marker |
| Flammability |
Yes |
| Cure Type |
Solvent Evaporation |
| Competes with Loctite® |
Dykem® Cross Check® Dykem is a registered trademark and Cross Check is a trademark of Illinois Tool Works Inc. Delaware., F-900 Torque Seal®. Torque Seal is a registered trademark of Illinois Tool |
| Base Material |
Isopropanol |
| Shelf Life (months) |
12 |
| DOT Limited Quantites |
Cargo aircraft 60 L, Rail 5 L |
| Country of Origin |
USA |
| Certification Indicator |
D |
| Origin Criterion |
B |
| Qualification Method |
TS |
| HTS Code |
3208200000 |
| UNSPSC |
31211513 |
Original: $4.09
-65%$4.09
$1.43Description
Vibra-Tite Viz-Torque® 202
Viz-Torque 202 Tamper Detection Marker is an inspection paste used to visually detect torque movement due to vibratory loosening or tampering of fittings, assemblies, nuts, bolts and studs. This quick-drying tamper proof torque marker identifies whether a part has been moved from its original position. Once dried in place, Viz-Torque 202 Tamper Detection Marker creates a seal for torque movement detection, which allows the dry and brittle material stripe to break, providing proof of fastener tampering or loosening. Viz-Torque 202 has good adhesion to most metals when applied to a clean, dry surface and is available in a selection of highly visible colors.
| Size |
1 oz, 16 oz |
|---|---|
| Viscosity Range (cP) |
11000, 18000 |
| Temp Range Low (°F) |
-20 |
| Temp Range High (°F) |
300 |
| Tack Free TIme |
1 |
| Specific Gravity |
1.00 |
| Physical Form |
Paste |
| Open Time |
B |
| Key Substrates |
Metal |
| Function |
Tamper Detection Marker |
| Flammability |
Yes |
| Cure Type |
Solvent Evaporation |
| Competes with Loctite® |
Dykem® Cross Check® Dykem is a registered trademark and Cross Check is a trademark of Illinois Tool Works Inc. Delaware., F-900 Torque Seal®. Torque Seal is a registered trademark of Illinois Tool |
| Base Material |
Isopropanol |
| Shelf Life (months) |
12 |
| DOT Limited Quantites |
Cargo aircraft 60 L, Rail 5 L |
| Country of Origin |
USA |
| Certification Indicator |
D |
| Origin Criterion |
B |
| Qualification Method |
TS |
| HTS Code |
3208200000 |
| UNSPSC |
31211513 |
